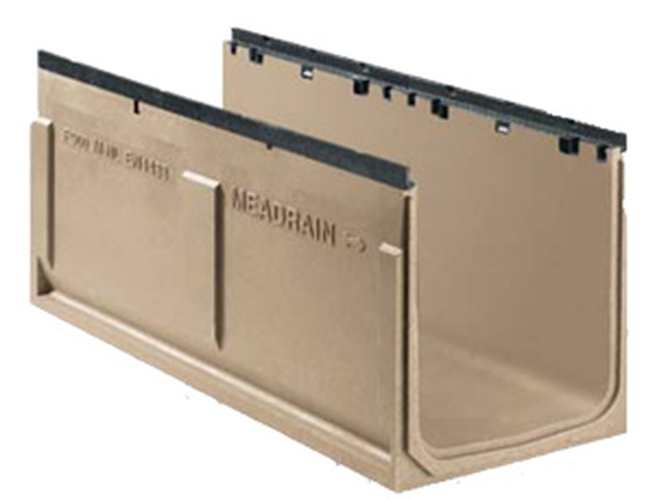

HD3000 is a 300mm polymer concrete drainage channel has a nominal width of 300mm for load class applications up to F900.

The HD3000 has an integral cast iron edge rail for strength under extreme dynamic loading. The lightweight construction of polymer concrete reduces installation time and manpower required on site.

  • Channel sections for a linear fall (base fall 0.5%) and no fall
  • Also with integral outlet connector
  • F900 300mm drainage channel for airports, ports and industrial areas
  • D400 300mm drainage channel for car parks, industrial and commercial units

If you require any assistance or more information please contact us by phone on 01603 488700 or by email

HD3000 Polymer Drainage Channel line drawing

Load classes

  • Carriageways
  • Industrial zone
  • Special surfaces like airport traffic areas
Product Name
Min / Max Height
Channel / Overall Width
HD3000 Polymer Drainage Channel
390 - 490mm
300 - 354mm

    All Available Downloads for HD3000 Polymer Drainage Channel

    Althon Heavy Duty 3000

    Brochures, Datasheets and Installation Instructions for HD3000 Polymer Drainage Channel
