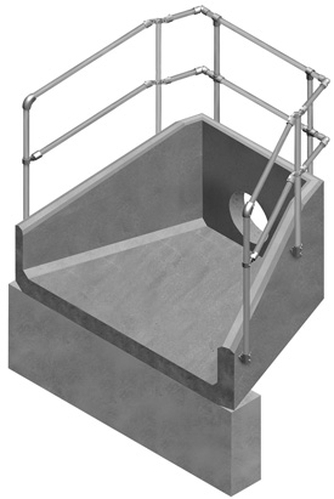

Sewers for Adoption SFA10B Headwall

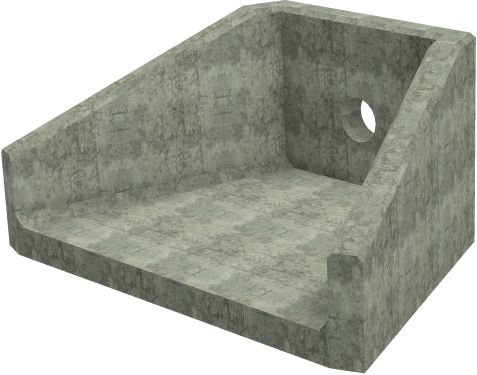

SFA10 B Headwall - 225mm ID pipe - 225mm Invert Level

Example Render

RFA Object

Version: 1
Last Updated: April 23, 2019, 11:36 a.m.

Download RFA Object

Add RFA object to zip

ADSK Object

Version: 1
Last Updated: April 23, 2019, 11:36 a.m.

Download ADSK Object

Add ADSK object to zip

IFC Object

Version: 1
Last Updated: April 23, 2019, 11:36 a.m.

Download IFC Object

Add IFC object to zip

COBie Parameters

Parameter Name	Parameter Value
Name	PrecastConcreteHeadwall_SFA10B_225mmIDPipe_225mmIL_AlthonLimited
CreatedBy	drawings@althon.co.uk
CreatedOn	2019-04-23T11:36:00
Category	n/a
Description	Precast Concrete Headwall
AssetType	Fixed
Manufacturer	sales@althon.co.uk
ModelNumber	SFA10B
WarrantyGuarantorParts	sales@althon.co.uk
WarrantyDurationParts	n/a
WarrantyGuarantorLabor	n/a
WarrantyDurationLabor	n/a
WarrantyDurationUnit	year
ReplacementCost	n/a
ExpectedLife	>100
DurationUnit	year
WarrantyDescription	n/a
NominalLength	1500
NominalWidth	1000
NominalHeight	1040
ModelReference	Precast Concrete Headwall
Shape	n/a
Size	1500 x 1000 x 1040
Colour	Light Grey
Finish	Steel mould concrete finish
Grade	n/a
Material	Concrete
Constituents	n/a
Features	Lifting points cast into headwall
AccessibilityPerformance	n/a
CodePerformance	BS EN 15258:2008
SustainabilityPerformance	n/a

Althon_General Parameters

Parameter Name	Parameter Value
Author	Althon Limited
BIMObjectName	AlthonLimited_PrecastConcreteHeadwall_SFA10B_225mmIDPipe_225mmIL
Version	1
LastUpdated	2019-04-23T11:36:00
ADSKCompatible	2X3
RevitCompatible	2018 +
ManufactureName	Althon Limited
ManufacturerURL	www.althon.co.uk
NBSDescription	Precast concrete headwall unit
NBSNote	n/a
NBSOfficeMasterTag	n/a
NBSReference	45-25-40/305
NBSTypeID	n/a
DocumentationLiterature	https://www.althon.co.uk/products/sfa10-b-headwall/detail/
DocumentationInstallationGuide	https://www.althon.co.uk/products/sfa10-b-headwall/detail/
DocumentationTechnical	https://www.althon.co.uk/products/sfa10-b-headwall/detail/
DocumentationCertificates	On request
Uniclass2015code	Pr_20_93_37_65
Uniclass2015Title	Precast concrete headwall units
Uniclass2015Version	Products v1.13
AlthonGeneralNotes	We can cast multiple pipe opening, elliptical, square or rectangular culvert openings into any of our headwalls. We can also cast pipe openings into the wing walls of our headwalls.
AlthonHeadwallInstallation	Units should be bedded on minimum 200mm thick well compacted Class 6A* selected well graded granular material. *Manual of contract documents for Highway Works: Volume (MCHW1) specification for Highway Works, Series 600 (Nov.09). Sit the headwall level or with a slight fall 1:50 from pipe to spill mouth.
AlthonHandling	A. Weight of concrete is based on 2.4 tonne/m³+5% is recommended for sizing lifting equipment B. All lifting points shall be used as specified below C. Unit to be lifted as per lifting diagram
AlthonConcrete	A. Mix ref: Self-compacting DC4/DS4 Mix B. Lifting strength bases on 2 cubes = 20N/mm² C. Characteristic 28 day cube strength = 50N/mm² D. Concrete provides Design Chemical Class 4 (DC4) to special Digest1, Table F2
AlthonReinforcement	A. Reinforcement to BS EN 13369 B. Scheduling, dimensioning, bending & cutting to BS8666 C. Cage to be machine tied with steel wire
AlthonManufacture	A. Manufacture to BS EN 15258:2008 precast concrete products - Retaining wall elements, Factory Production Control certificate number: 0086-CPR-650448 & BS EN 13369 B. Tolerances to BS EN 13369 clause 4.3.1.1 C. Finishing Top: Class A Sides: Class A Base: Class A Rear of back wall: Self-Levelled D. Marking: Units shall be indelibly marked to show: mould reference code De-mould date Job reference number and unique product number unit weight (kg)
AlthonDesign	A. Concrete design to EC2 B. Althon have designed the concrete units only, the site conditions should be assessed for suitability by the scheme designer C. Units are designed to withstand a vertical live load surcharge of 10kN/M² D. Weight of soil - 18kN/M² E. Angle of internal friction = 30 Deg. F. Design Life: >100 years Cover Block Size (mm): All Faces 55 Min Cover Size (mm): All Faces 55 Max Cover Size (mm): All Faces 60 Exposure induced by Carbonation: All Faces XC3/4 Corrosion induced by Chloride: XD3 Freeze/thaw attack: XF4 Chemical attack: XA3
AlthonFabrication	A. Manufacture IAW EN 1090-2 EXC CLASS 1 B. Material grade is to be: BS EN 10025 S275 C. Welding carried out IAW EN 1090-2 PARA 7.5.4 - 7.5.18 D. All fillet and butt welds to have a minimum throat thickness of 6mm & joints to be fully welded where possible. E. Ensure vertical flats are fully welded both sides where possible. F. All sharp edges and burrs are to be removed. G. Remove all weld splatter. H. Holes by punching are permitted with reaming. I. Galvanising is carried out after fabrication to BS EN:ISO 1461
AlthonHeadwallMaxPipeSize	Opening in back wall cast to suit outside diameter of the pipe work. Invert level of pipe can be set to your specification
AlthonHandrailSpecification	Max Pipe Opening PCC = 450mm ID and Max Pipe Opening Pastic/Clayware = 500mm ID
AlthonToeInformation	Our Sewers for Adoption compliant outfall range is available with toe extensions either 300 or 500mm thick with depths ranging from 400 to 1000mm.

Built with: Autodesk Inventor Professional 2018

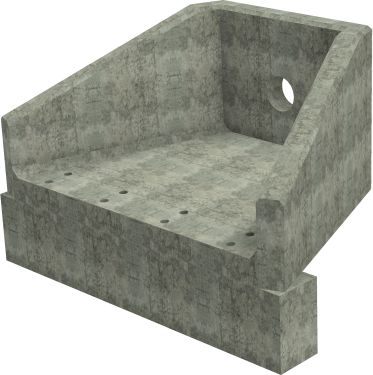

SFA10 B Headwall - 225mm ID pipe - 225mm Invert Level + 450 x 300mm Toe

Example Render

RFA Object

Version: 1
Last Updated: April 23, 2019, 11:36 a.m.

Download RFA Object

Add RFA object to zip

ADSK Object

Version: 1
Last Updated: April 23, 2019, 11:36 a.m.

Download ADSK Object

Add ADSK object to zip

IFC Object

Version: 1
Last Updated: April 23, 2019, 11:36 a.m.

Download IFC Object

Add IFC object to zip

COBie Parameters

Parameter Name	Parameter Value
Name	PrecastConcreteHeadwall_SFA10B_225mmIDPipe_225mmIL_450x300mmT_AlthonLimited
CreatedBy	drawings@althon.co.uk
CreatedOn	2019-04-23T11:36:00
Category	n/a
Description	Precast Concrete Headwall
AssetType	Fixed
Manufacturer	sales@althon.co.uk
ModelNumber	SFA10B
WarrantyGuarantorParts	sales@althon.co.uk
WarrantyDurationParts	n/a
WarrantyGuarantorLabor	n/a
WarrantyDurationLabor	n/a
WarrantyDurationUnit	year
ReplacementCost	n/a
ExpectedLife	>100
DurationUnit	year
WarrantyDescription	n/a
NominalLength	1500
NominalWidth	1000
NominalHeight	1040
ModelReference	Precast Concrete Headwall
Shape	n/a
Size	1500 x 1000 x 1040
Colour	Light Grey
Finish	Steel mould concrete finish
Grade	n/a
Material	Concrete
Constituents	n/a
Features	Lifting points cast into headwall
AccessibilityPerformance	n/a
CodePerformance	BS EN 15258:2008
SustainabilityPerformance	n/a

Althon_General Parameters

Parameter Name	Parameter Value
Author	Althon Limited
BIMObjectName	AlthonLimited_PrecastConcreteHeadwall_SFA10B_225mmIDPipe_225mmIL_450x300mmT
Version	1
LastUpdated	2019-04-23T11:36:00
ADSKCompatible	2X3
RevitCompatible	2018 +
ManufactureName	Althon Limited
ManufacturerURL	www.althon.co.uk
NBSDescription	Precast concrete headwall unit
NBSNote	n/a
NBSOfficeMasterTag	n/a
NBSReference	45-25-40/305
NBSTypeID	n/a
DocumentationLiterature	https://www.althon.co.uk/products/sfa10-b-headwall/detail/
DocumentationInstallationGuide	https://www.althon.co.uk/products/sfa10-b-headwall/detail/
DocumentationTechnical	https://www.althon.co.uk/products/sfa10-b-headwall/detail/
DocumentationCertificates	On request
Uniclass2015code	Pr_20_93_37_65
Uniclass2015Title	Precast concrete headwall units
Uniclass2015Version	Products v1.13
AlthonGeneralNotes	We can cast multiple pipe opening, elliptical, square or rectangular culvert openings into any of our headwalls. We can also cast pipe openings into the wing walls of our headwalls.
AlthonHeadwallInstallation	Units should be bedded on minimum 200mm thick well compacted Class 6A* selected well graded granular material. *Manual of contract documents for Highway Works: Volume (MCHW1) specification for Highway Works, Series 600 (Nov.09). Sit the headwall level or with a slight fall 1:50 from pipe to spill mouth.
AlthonHandling	A. Weight of concrete is based on 2.4 tonne/m³+5% is recommended for sizing lifting equipment B. All lifting points shall be used as specified below C. Unit to be lifted as per lifting diagram
AlthonConcrete	A. Mix ref: Self-compacting DC4/DS4 Mix B. Lifting strength bases on 2 cubes = 20N/mm² C. Characteristic 28 day cube strength = 50N/mm² D. Concrete provides Design Chemical Class 4 (DC4) to special Digest1, Table F2
AlthonReinforcement	A. Reinforcement to BS EN 13369 B. Scheduling, dimensioning, bending & cutting to BS8666 C. Cage to be machine tied with steel wire
AlthonManufacture	A. Manufacture to BS EN 15258:2008 precast concrete products - Retaining wall elements, Factory Production Control certificate number: 0086-CPR-650448 & BS EN 13369 B. Tolerances to BS EN 13369 clause 4.3.1.1 C. Finishing Top: Class A Sides: Class A Base: Class A Rear of back wall: Self-Levelled D. Marking: Units shall be indelibly marked to show: mould reference code De-mould date Job reference number and unique product number unit weight (kg)
AlthonDesign	A. Concrete design to EC2 B. Althon have designed the concrete units only, the site conditions should be assessed for suitability by the scheme designer C. Units are designed to withstand a vertical live load surcharge of 10kN/M² D. Weight of soil - 18kN/M² E. Angle of internal friction = 30 Deg. F. Design Life: >100 years Cover Block Size (mm): All Faces 55 Min Cover Size (mm): All Faces 55 Max Cover Size (mm): All Faces 60 Exposure induced by Carbonation: All Faces XC3/4 Corrosion induced by Chloride: XD3 Freeze/thaw attack: XF4 Chemical attack: XA3
AlthonFabrication	A. Manufacture IAW EN 1090-2 EXC CLASS 1 B. Material grade is to be: BS EN 10025 S275 C. Welding carried out IAW EN 1090-2 PARA 7.5.4 - 7.5.18 D. All fillet and butt welds to have a minimum throat thickness of 6mm & joints to be fully welded where possible. E. Ensure vertical flats are fully welded both sides where possible. F. All sharp edges and burrs are to be removed. G. Remove all weld splatter. H. Holes by punching are permitted with reaming. I. Galvanising is carried out after fabrication to BS EN:ISO 1461
AlthonHeadwallMaxPipeSize	Opening in back wall cast to suit outside diameter of the pipe work. Invert level of pipe can be set to your specification
AlthonHandrailSpecification	Max Pipe Opening PCC = 450mm ID and Max Pipe Opening Pastic/Clayware = 500mm ID
AlthonToeInformation	Our Sewers for Adoption compliant outfall range is available with toe extensions either 300 or 500mm thick with depths ranging from 400 to 1000mm.

Built with: Autodesk Inventor Professional 2018

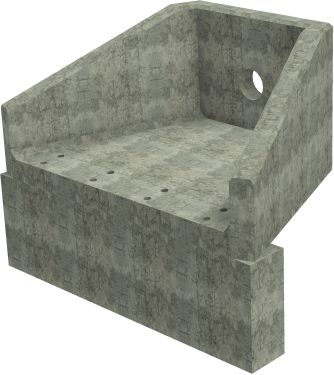

SFA10 B Headwall - 225mm ID pipe - 225mm Invert Level + 700 X 300mm Toe

Example Render

RFA Object

Version: 1
Last Updated: April 23, 2019, 11:36 a.m.

Download RFA Object

Add RFA object to zip

ADSK Object

Version: 1
Last Updated: April 23, 2019, 11:36 a.m.

Download ADSK Object

Add ADSK object to zip

IFC Object

Version: 1
Last Updated: April 23, 2019, 11:36 a.m.

Download IFC Object

Add IFC object to zip

COBie Parameters

Parameter Name	Parameter Value
Name	PrecastConcreteHeadwall_SFA10B_225mmIDPipe_225mmIL_700x300mmT_AlthonLimited
CreatedBy	drawings@althon.co.uk
CreatedOn	2019-04-23T11:36:00
Category	n/a
Description	Precast Concrete Headwall
AssetType	Fixed
Manufacturer	sales@althon.co.uk
ModelNumber	SFA10B
WarrantyGuarantorParts	sales@althon.co.uk
WarrantyDurationParts	n/a
WarrantyGuarantorLabor	n/a
WarrantyDurationLabor	n/a
WarrantyDurationUnit	year
ReplacementCost	n/a
ExpectedLife	>100
DurationUnit	year
WarrantyDescription	n/a
NominalLength	1500
NominalWidth	1000
NominalHeight	1040
ModelReference	Precast Concrete Headwall
Shape	n/a
Size	1500 x 1000 x 1040
Colour	Light Grey
Finish	Steel mould concrete finish
Grade	n/a
Material	Concrete
Constituents	n/a
Features	Lifting points cast into headwall
AccessibilityPerformance	n/a
CodePerformance	BS EN 15258:2008
SustainabilityPerformance	n/a

Althon_General Parameters

Parameter Name	Parameter Value
Author	Althon Limited
BIMObjectName	AlthonLimited_PrecastConcreteHeadwall_SFA10B_225mmIDPipe_225mmIL_700x300mmT
Version	1
LastUpdated	2019-04-23T11:36:00
ADSKCompatible	2X3
RevitCompatible	2018 +
ManufactureName	Althon Limited
ManufacturerURL	www.althon.co.uk
NBSDescription	Precast concrete headwall unit
NBSNote	n/a
NBSOfficeMasterTag	n/a
NBSReference	45-25-40/305
NBSTypeID	n/a
DocumentationLiterature	https://www.althon.co.uk/products/sfa10-b-headwall/detail/
DocumentationInstallationGuide	https://www.althon.co.uk/products/sfa10-b-headwall/detail/
DocumentationTechnical	https://www.althon.co.uk/products/sfa10-b-headwall/detail/
DocumentationCertificates	On request
Uniclass2015code	Pr_20_93_37_65
Uniclass2015Title	Precast concrete headwall units
Uniclass2015Version	Products v1.13
AlthonGeneralNotes	We can cast multiple pipe opening, elliptical, square or rectangular culvert openings into any of our headwalls. We can also cast pipe openings into the wing walls of our headwalls.
AlthonHeadwallInstallation	Units should be bedded on minimum 200mm thick well compacted Class 6A* selected well graded granular material. *Manual of contract documents for Highway Works: Volume (MCHW1) specification for Highway Works, Series 600 (Nov.09). Sit the headwall level or with a slight fall 1:50 from pipe to spill mouth.
AlthonHandling	A. Weight of concrete is based on 2.4 tonne/m³+5% is recommended for sizing lifting equipment B. All lifting points shall be used as specified below C. Unit to be lifted as per lifting diagram
AlthonConcrete	A. Mix ref: Self-compacting DC4/DS4 Mix B. Lifting strength bases on 2 cubes = 20N/mm² C. Characteristic 28 day cube strength = 50N/mm² D. Concrete provides Design Chemical Class 4 (DC4) to special Digest1, Table F2
AlthonReinforcement	A. Reinforcement to BS EN 13369 B. Scheduling, dimensioning, bending & cutting to BS8666 C. Cage to be machine tied with steel wire
AlthonManufacture	A. Manufacture to BS EN 15258:2008 precast concrete products - Retaining wall elements, Factory Production Control certificate number: 0086-CPR-650448 & BS EN 13369 B. Tolerances to BS EN 13369 clause 4.3.1.1 C. Finishing Top: Class A Sides: Class A Base: Class A Rear of back wall: Self-Levelled D. Marking: Units shall be indelibly marked to show: mould reference code De-mould date Job reference number and unique product number unit weight (kg)
AlthonDesign	A. Concrete design to EC2 B. Althon have designed the concrete units only, the site conditions should be assessed for suitability by the scheme designer C. Units are designed to withstand a vertical live load surcharge of 10kN/M² D. Weight of soil - 18kN/M² E. Angle of internal friction = 30 Deg. F. Design Life: >100 years Cover Block Size (mm): All Faces 55 Min Cover Size (mm): All Faces 55 Max Cover Size (mm): All Faces 60 Exposure induced by Carbonation: All Faces XC3/4 Corrosion induced by Chloride: XD3 Freeze/thaw attack: XF4 Chemical attack: XA3
AlthonFabrication	A. Manufacture IAW EN 1090-2 EXC CLASS 1 B. Material grade is to be: BS EN 10025 S275 C. Welding carried out IAW EN 1090-2 PARA 7.5.4 - 7.5.18 D. All fillet and butt welds to have a minimum throat thickness of 6mm & joints to be fully welded where possible. E. Ensure vertical flats are fully welded both sides where possible. F. All sharp edges and burrs are to be removed. G. Remove all weld splatter. H. Holes by punching are permitted with reaming. I. Galvanising is carried out after fabrication to BS EN:ISO 1461
AlthonHeadwallMaxPipeSize	Opening in back wall cast to suit outside diameter of the pipe work. Invert level of pipe can be set to your specification
AlthonHandrailSpecification	Max Pipe Opening PCC = 450mm ID and Max Pipe Opening Pastic/Clayware = 500mm ID
AlthonToeInformation	Our Sewers for Adoption compliant outfall range is available with toe extensions either 300 or 500mm thick with depths ranging from 400 to 1000mm.

Built with: Autodesk Inventor Professional 2018

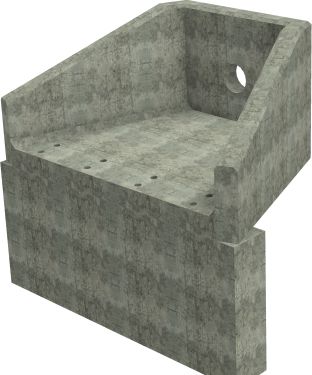

SFA10 B Headwall - 225mm ID pipe - 225mm Invert Level + 1000 x 300mm Toe

Example Render

ADSK Object

Version: 1
Last Updated: April 23, 2019, 11:36 a.m.

Download ADSK Object

Add ADSK object to zip

RFA Object

Version: 1
Last Updated: April 23, 2019, 11:36 a.m.

Download RFA Object

Add RFA object to zip

IFC Object

Version: 1
Last Updated: April 23, 2019, 11:36 a.m.

Download IFC Object

Add IFC object to zip

COBie Parameters

Parameter Name	Parameter Value
Name	PrecastConcreteHeadwall_SFA10B_225mmIDPipe_225mmIL_1000x300mmT_AlthonLimited
CreatedBy	drawings@althon.co.uk
CreatedOn	2019-04-23T11:36:00
Category	n/a
Description	Precast Concrete Headwall
AssetType	Fixed
Manufacturer	sales@althon.co.uk
ModelNumber	SFA10B
WarrantyGuarantorParts	sales@althon.co.uk
WarrantyDurationParts	n/a
WarrantyGuarantorLabor	n/a
WarrantyDurationLabor	n/a
WarrantyDurationUnit	year
ReplacementCost	n/a
ExpectedLife	>100
DurationUnit	year
WarrantyDescription	n/a
NominalLength	1500
NominalWidth	1000
NominalHeight	1040
ModelReference	Precast Concrete Headwall
Shape	n/a
Size	1500 x 1000 x 1040
Colour	Light Grey
Finish	Steel mould concrete finish
Grade	n/a
Material	Concrete
Constituents	n/a
Features	Lifting points cast into headwall
AccessibilityPerformance	n/a
CodePerformance	BS EN 15258:2008
SustainabilityPerformance	n/a

Althon_General Parameters

Parameter Name	Parameter Value
Author	Althon Limited
BIMObjectName	AlthonLimited_PrecastConcreteHeadwall_SFA10B_225mmIDPipe_225mmIL_1000x300mmT
Version	1
LastUpdated	2019-04-23T11:36:00
ADSKCompatible	2X3
RevitCompatible	2018 +
ManufactureName	Althon Limited
ManufacturerURL	www.althon.co.uk
NBSDescription	Precast concrete headwall unit
NBSNote	n/a
NBSOfficeMasterTag	n/a
NBSReference	45-25-40/305
NBSTypeID	n/a
DocumentationLiterature	https://www.althon.co.uk/products/sfa10-b-headwall/detail/
DocumentationInstallationGuide	https://www.althon.co.uk/products/sfa10-b-headwall/detail/
DocumentationTechnical	https://www.althon.co.uk/products/sfa10-b-headwall/detail/
DocumentationCertificates	On request
Uniclass2015code	Pr_20_93_37_65
Uniclass2015Title	Precast concrete headwall units
Uniclass2015Version	Products v1.13
AlthonGeneralNotes	We can cast multiple pipe opening, elliptical, square or rectangular culvert openings into any of our headwalls. We can also cast pipe openings into the wing walls of our headwalls.
AlthonHeadwallInstallation	Units should be bedded on minimum 200mm thick well compacted Class 6A* selected well graded granular material. *Manual of contract documents for Highway Works: Volume (MCHW1) specification for Highway Works, Series 600 (Nov.09). Sit the headwall level or with a slight fall 1:50 from pipe to spill mouth.
AlthonHandling	A. Weight of concrete is based on 2.4 tonne/m³+5% is recommended for sizing lifting equipment B. All lifting points shall be used as specified below C. Unit to be lifted as per lifting diagram
AlthonConcrete	A. Mix ref: Self-compacting DC4/DS4 Mix B. Lifting strength bases on 2 cubes = 20N/mm² C. Characteristic 28 day cube strength = 50N/mm² D. Concrete provides Design Chemical Class 4 (DC4) to special Digest1, Table F2
AlthonReinforcement	A. Reinforcement to BS EN 13369 B. Scheduling, dimensioning, bending & cutting to BS8666 C. Cage to be machine tied with steel wire
AlthonManufacture	A. Manufacture to BS EN 15258:2008 precast concrete products - Retaining wall elements, Factory Production Control certificate number: 0086-CPR-650448 & BS EN 13369 B. Tolerances to BS EN 13369 clause 4.3.1.1 C. Finishing Top: Class A Sides: Class A Base: Class A Rear of back wall: Self-Levelled D. Marking: Units shall be indelibly marked to show: mould reference code De-mould date Job reference number and unique product number unit weight (kg)
AlthonDesign	A. Concrete design to EC2 B. Althon have designed the concrete units only, the site conditions should be assessed for suitability by the scheme designer C. Units are designed to withstand a vertical live load surcharge of 10kN/M² D. Weight of soil - 18kN/M² E. Angle of internal friction = 30 Deg. F. Design Life: >100 years Cover Block Size (mm): All Faces 55 Min Cover Size (mm): All Faces 55 Max Cover Size (mm): All Faces 60 Exposure induced by Carbonation: All Faces XC3/4 Corrosion induced by Chloride: XD3 Freeze/thaw attack: XF4 Chemical attack: XA3
AlthonFabrication	A. Manufacture IAW EN 1090-2 EXC CLASS 1 B. Material grade is to be: BS EN 10025 S275 C. Welding carried out IAW EN 1090-2 PARA 7.5.4 - 7.5.18 D. All fillet and butt welds to have a minimum throat thickness of 6mm & joints to be fully welded where possible. E. Ensure vertical flats are fully welded both sides where possible. F. All sharp edges and burrs are to be removed. G. Remove all weld splatter. H. Holes by punching are permitted with reaming. I. Galvanising is carried out after fabrication to BS EN:ISO 1461
AlthonHeadwallMaxPipeSize	Opening in back wall cast to suit outside diameter of the pipe work. Invert level of pipe can be set to your specification
AlthonHandrailSpecification	Max Pipe Opening PCC = 450mm ID and Max Pipe Opening Pastic/Clayware = 500mm ID
AlthonToeInformation	Our Sewers for Adoption compliant outfall range is available with toe extensions either 300 or 500mm thick with depths ranging from 400 to 1000mm.

Built with: Autodesk Inventor Professional 2018

SFA10 B Headwall - 300mm ID pipe - 225mm Invert Level

Example Render

RFA Object

Version: 1
Last Updated: April 23, 2019, 11:36 a.m.

Download RFA Object

Add RFA object to zip

ADSK Object

Version: 1
Last Updated: April 23, 2019, 11:36 a.m.

Download ADSK Object

Add ADSK object to zip

IFC Object

Version: 1
Last Updated: April 23, 2019, 11:36 a.m.

Download IFC Object

Add IFC object to zip

COBie Parameters

Parameter Name	Parameter Value
Name	PrecastConcreteHeadwall_SFA10B_300mmIDPipe_225mmIL_AlthonLimited
CreatedBy	drawings@althon.co.uk
CreatedOn	2019-04-23T11:36:00
Category	n/a
Description	Precast Concrete Headwall
AssetType	Fixed
Manufacturer	sales@althon.co.uk
ModelNumber	SFA10B
WarrantyGuarantorParts	sales@althon.co.uk
WarrantyDurationParts	n/a
WarrantyGuarantorLabor	n/a
WarrantyDurationLabor	n/a
WarrantyDurationUnit	year
ReplacementCost	n/a
ExpectedLife	>100
DurationUnit	year
WarrantyDescription	n/a
NominalLength	1500
NominalWidth	1000
NominalHeight	1040
ModelReference	Precast Concrete Headwall
Shape	n/a
Size	1500 x 1000 x 1040
Colour	Light Grey
Finish	Steel mould concrete finish
Grade	n/a
Material	Concrete
Constituents	n/a
Features	Lifting points cast into headwall
AccessibilityPerformance	n/a
CodePerformance	BS EN 15258:2008
SustainabilityPerformance	n/a

Althon_General Parameters

Parameter Name	Parameter Value
Author	Althon Limited
BIMObjectName	AlthonLimited_PrecastConcreteHeadwall_SFA10B_300mmIDPipe_225mmIL
Version	1
LastUpdated	2019-04-23T11:36:00
ADSKCompatible	2X3
RevitCompatible	2018 +
ManufactureName	Althon Limited
ManufacturerURL	www.althon.co.uk
NBSDescription	Precast concrete headwall unit
NBSNote	n/a
NBSOfficeMasterTag	n/a
NBSReference	45-25-40/305
NBSTypeID	n/a
DocumentationLiterature	https://www.althon.co.uk/products/sfa10-b-headwall/detail/
DocumentationInstallationGuide	https://www.althon.co.uk/products/sfa10-b-headwall/detail/
DocumentationTechnical	https://www.althon.co.uk/products/sfa10-b-headwall/detail/
DocumentationCertificates	On request
Uniclass2015code	Pr_20_93_37_65
Uniclass2015Title	Precast concrete headwall units
Uniclass2015Version	Products v1.13
AlthonGeneralNotes	We can cast multiple pipe opening, elliptical, square or rectangular culvert openings into any of our headwalls. We can also cast pipe openings into the wing walls of our headwalls.
AlthonHeadwallInstallation	Units should be bedded on minimum 200mm thick well compacted Class 6A* selected well graded granular material. *Manual of contract documents for Highway Works: Volume (MCHW1) specification for Highway Works, Series 600 (Nov.09). Sit the headwall level or with a slight fall 1:50 from pipe to spill mouth.
AlthonHandling	A. Weight of concrete is based on 2.4 tonne/m³+5% is recommended for sizing lifting equipment B. All lifting points shall be used as specified below C. Unit to be lifted as per lifting diagram
AlthonConcrete	A. Mix ref: Self-compacting DC4/DS4 Mix B. Lifting strength bases on 2 cubes = 20N/mm² C. Characteristic 28 day cube strength = 50N/mm² D. Concrete provides Design Chemical Class 4 (DC4) to special Digest1, Table F2
AlthonReinforcement	A. Reinforcement to BS EN 13369 B. Scheduling, dimensioning, bending & cutting to BS8666 C. Cage to be machine tied with steel wire
AlthonManufacture	A. Manufacture to BS EN 15258:2008 precast concrete products - Retaining wall elements, Factory Production Control certificate number: 0086-CPR-650448 & BS EN 13369 B. Tolerances to BS EN 13369 clause 4.3.1.1 C. Finishing Top: Class A Sides: Class A Base: Class A Rear of back wall: Self-Levelled D. Marking: Units shall be indelibly marked to show: mould reference code De-mould date Job reference number and unique product number unit weight (kg)
AlthonDesign	A. Concrete design to EC2 B. Althon have designed the concrete units only, the site conditions should be assessed for suitability by the scheme designer C. Units are designed to withstand a vertical live load surcharge of 10kN/M² D. Weight of soil - 18kN/M² E. Angle of internal friction = 30 Deg. F. Design Life: >100 years Cover Block Size (mm): All Faces 55 Min Cover Size (mm): All Faces 55 Max Cover Size (mm): All Faces 60 Exposure induced by Carbonation: All Faces XC3/4 Corrosion induced by Chloride: XD3 Freeze/thaw attack: XF4 Chemical attack: XA3
AlthonFabrication	A. Manufacture IAW EN 1090-2 EXC CLASS 1 B. Material grade is to be: BS EN 10025 S275 C. Welding carried out IAW EN 1090-2 PARA 7.5.4 - 7.5.18 D. All fillet and butt welds to have a minimum throat thickness of 6mm & joints to be fully welded where possible. E. Ensure vertical flats are fully welded both sides where possible. F. All sharp edges and burrs are to be removed. G. Remove all weld splatter. H. Holes by punching are permitted with reaming. I. Galvanising is carried out after fabrication to BS EN:ISO 1461
AlthonHeadwallMaxPipeSize	Opening in back wall cast to suit outside diameter of the pipe work. Invert level of pipe can be set to your specification
AlthonHandrailSpecification	Max Pipe Opening PCC = 450mm ID and Max Pipe Opening Pastic/Clayware = 500mm ID
AlthonToeInformation	Our Sewers for Adoption compliant outfall range is available with toe extensions either 300 or 500mm thick with depths ranging from 400 to 1000mm.

Built with: Autodesk Inventor Professional 2018

SFA10 B Headwall - 300mm ID pipe - 225mm Invert Level + 450 x 300mm Toe

Example Render

IFC Object

Version: 1
Last Updated: April 23, 2019, 11:36 a.m.

Download IFC Object

Add IFC object to zip

ADSK Object

Version: 1
Last Updated: April 23, 2019, 11:36 a.m.

Download ADSK Object

Add ADSK object to zip

RFA Object

Version: 1
Last Updated: April 23, 2019, 11:36 a.m.

Download RFA Object

Add RFA object to zip

COBie Parameters

Parameter Name	Parameter Value
Name	PrecastConcreteHeadwall_SFA10B_300mmIDPipe_225mmIL_450x300mmT_AlthonLimited
CreatedBy	drawings@althon.co.uk
CreatedOn	2019-04-23T11:36:00
Category	n/a
Description	Precast Concrete Headwall
AssetType	Fixed
Manufacturer	sales@althon.co.uk
ModelNumber	SFA10B
WarrantyGuarantorParts	sales@althon.co.uk
WarrantyDurationParts	n/a
WarrantyGuarantorLabor	n/a
WarrantyDurationLabor	n/a
WarrantyDurationUnit	year
ReplacementCost	n/a
ExpectedLife	>100
DurationUnit	year
WarrantyDescription	n/a
NominalLength	1500
NominalWidth	1000
NominalHeight	1040
ModelReference	Precast Concrete Headwall
Shape	n/a
Size	1500 x 1000 x 1040
Colour	Light Grey
Finish	Steel mould concrete finish
Grade	n/a
Material	Concrete
Constituents	n/a
Features	Lifting points cast into headwall
AccessibilityPerformance	n/a
CodePerformance	BS EN 15258:2008
SustainabilityPerformance	n/a

Althon_General Parameters

Parameter Name	Parameter Value
Author	Althon Limited
BIMObjectName	AlthonLimited_PrecastConcreteHeadwall_SFA10B_300mmIDPipe_225mmIL_450x300mmT
Version	1
LastUpdated	2019-04-23T11:36:00
ADSKCompatible	2X3
RevitCompatible	2018 +
ManufactureName	Althon Limited
ManufacturerURL	www.althon.co.uk
NBSDescription	Precast concrete headwall unit
NBSNote	n/a
NBSOfficeMasterTag	n/a
NBSReference	45-25-40/305
NBSTypeID	n/a
DocumentationLiterature	https://www.althon.co.uk/products/sfa10-b-headwall/detail/
DocumentationInstallationGuide	https://www.althon.co.uk/products/sfa10-b-headwall/detail/
DocumentationTechnical	https://www.althon.co.uk/products/sfa10-b-headwall/detail/
DocumentationCertificates	On request
Uniclass2015code	Pr_20_93_37_65
Uniclass2015Title	Precast concrete headwall units
Uniclass2015Version	Products v1.13
AlthonGeneralNotes	We can cast multiple pipe opening, elliptical, square or rectangular culvert openings into any of our headwalls. We can also cast pipe openings into the wing walls of our headwalls.
AlthonHeadwallInstallation	Units should be bedded on minimum 200mm thick well compacted Class 6A* selected well graded granular material. *Manual of contract documents for Highway Works: Volume (MCHW1) specification for Highway Works, Series 600 (Nov.09). Sit the headwall level or with a slight fall 1:50 from pipe to spill mouth.
AlthonHandling	A. Weight of concrete is based on 2.4 tonne/m³+5% is recommended for sizing lifting equipment B. All lifting points shall be used as specified below C. Unit to be lifted as per lifting diagram
AlthonConcrete	A. Mix ref: Self-compacting DC4/DS4 Mix B. Lifting strength bases on 2 cubes = 20N/mm² C. Characteristic 28 day cube strength = 50N/mm² D. Concrete provides Design Chemical Class 4 (DC4) to special Digest1, Table F2
AlthonReinforcement	A. Reinforcement to BS EN 13369 B. Scheduling, dimensioning, bending & cutting to BS8666 C. Cage to be machine tied with steel wire
AlthonManufacture	A. Manufacture to BS EN 15258:2008 precast concrete products - Retaining wall elements, Factory Production Control certificate number: 0086-CPR-650448 & BS EN 13369 B. Tolerances to BS EN 13369 clause 4.3.1.1 C. Finishing Top: Class A Sides: Class A Base: Class A Rear of back wall: Self-Levelled D. Marking: Units shall be indelibly marked to show: mould reference code De-mould date Job reference number and unique product number unit weight (kg)
AlthonDesign	A. Concrete design to EC2 B. Althon have designed the concrete units only, the site conditions should be assessed for suitability by the scheme designer C. Units are designed to withstand a vertical live load surcharge of 10kN/M² D. Weight of soil - 18kN/M² E. Angle of internal friction = 30 Deg. F. Design Life: >100 years Cover Block Size (mm): All Faces 55 Min Cover Size (mm): All Faces 55 Max Cover Size (mm): All Faces 60 Exposure induced by Carbonation: All Faces XC3/4 Corrosion induced by Chloride: XD3 Freeze/thaw attack: XF4 Chemical attack: XA3
AlthonFabrication	A. Manufacture IAW EN 1090-2 EXC CLASS 1 B. Material grade is to be: BS EN 10025 S275 C. Welding carried out IAW EN 1090-2 PARA 7.5.4 - 7.5.18 D. All fillet and butt welds to have a minimum throat thickness of 6mm & joints to be fully welded where possible. E. Ensure vertical flats are fully welded both sides where possible. F. All sharp edges and burrs are to be removed. G. Remove all weld splatter. H. Holes by punching are permitted with reaming. I. Galvanising is carried out after fabrication to BS EN:ISO 1461
AlthonHeadwallMaxPipeSize	Opening in back wall cast to suit outside diameter of the pipe work. Invert level of pipe can be set to your specification
AlthonHandrailSpecification	Max Pipe Opening PCC = 450mm ID and Max Pipe Opening Pastic/Clayware = 500mm ID
AlthonToeInformation	Our Sewers for Adoption compliant outfall range is available with toe extensions either 300 or 500mm thick with depths ranging from 400 to 1000mm.

Built with: Autodesk Inventor Professional 2018

SFA10 B Headwall - 300mm ID pipe - 225mm Invert Level + 450 x 300mm Toe + 3 Sided Kee Klamp + Sfa1 300 Outfall Safety Grille

IFC Object

Version: 1
Last Updated: July 9, 2019, 9:15 a.m.

Download IFC Object

Add IFC object to zip

ADSK Object

Version: 1
Last Updated: July 9, 2019, 9:15 a.m.

Download ADSK Object

Add ADSK object to zip

RFA Object

Version: 1
Last Updated: July 9, 2019, 9:15 a.m.

Download RFA Object

Add RFA object to zip

COBie Parameters

Parameter Name	Parameter Value
Name	PrecastConcreteHeadwall_SFA10B_300mmIDPipe_225mmIL_450x300mmT_3SKK_SFA1300OSG_AlthonLimited
CreatedBy	drawings@althon.co.uk
CreatedOn	2019-07-09T09:15:00
Category	n/a
Description	Precast Concrete Headwall
AssetType	Fixed
Manufacturer	sales@althon.co.uk
ModelNumber	SFA10B
WarrantyGuarantorParts	sales@althon.co.uk
WarrantyDurationParts	n/a
WarrantyGuarantorLabor	n/a
WarrantyDurationLabor	n/a
WarrantyDurationUnit	year
ReplacementCost	n/a
ExpectedLife	>120
DurationUnit	year
WarrantyDescription	n/a
NominalLength	1500
NominalWidth	1000
NominalHeight	1040
ModelReference	Precast Concrete Headwall
Shape	n/a
Size	1500 x 1000 x 1040
Colour	Light Grey
Finish	Steel mould concrete finish
Grade	n/a
Material	Concrete
Constituents	n/a
Features	Lifting points cast into headwall
AccessibilityPerformance	n/a
CodePerformance	BS EN 15258:2008
SustainabilityPerformance	n/a

Althon_General Parameters

Parameter Name	Parameter Value
Author	Althon Limited
BIMObjectName	AlthonLimited_PrecastConcreteHeadwall_SFA10B_300mmIDPipe_225mmIL_450x300mmT_3SKK_SFA1300OSG
Version	1
LastUpdated	2019-07-09T09:15:00
ADSKCompatible	2X3
RevitCompatible	2018 +
ManufactureName	Althon Limited
ManufacturerURL	www.althon.co.uk
NBSDescription	Precast concrete headwall unit
NBSNote	n/a
NBSOfficeMasterTag	n/a
NBSReference	45-25-40/305
NBSTypeID	n/a
DocumentationLiterature	https://www.althon.co.uk/products/sfa10-b-headwall/detail/
DocumentationInstallationGuide	https://www.althon.co.uk/products/sfa10-b-headwall/detail/
DocumentationTechnical	https://www.althon.co.uk/products/sfa10-b-headwall/detail/
DocumentationCertificates	On request
Uniclass2015code	Pr_20_93_37_65
Uniclass2015Title	Precast concrete headwall units
Uniclass2015Version	Products v1.13
AlthonGeneralNotes	We can cast multiple pipe opening, elliptical, square or rectangular culvert openings into any of our headwalls. We can also cast pipe openings into the wing walls of our headwalls.
AlthonHeadwallInstallation	Units should be bedded on minimum 200mm thick well compacted Class 6A* selected well graded granular material. *Manual of contract documents for Highway Works: Volume (MCHW1) specification for Highway Works, Series 600 (Nov.09). Sit the headwall level or with a slight fall 1:50 from pipe to spill mouth.
AlthonHandling	A. Weight of concrete is based on 2.4 tonne/m³+5% is recommended for sizing lifting equipment B. All lifting points shall be used as specified below C. Unit to be lifted as per lifting diagram
AlthonConcrete	A. Mix ref: Self-compacting DC4/DS4 Mix B. Lifting strength bases on 2 cubes = 20N/mm² C. Characteristic 28 day cube strength = 50N/mm² D. Concrete provides Design Chemical Class 4 (DC4) to special Digest1, Table F2
AlthonReinforcement	A. Reinforcement to BS EN 13369 B. Scheduling, dimensioning, bending & cutting to BS8666 C. Cage to be machine tied with steel wire
AlthonManufacture	A. Manufacture to BS EN 15258:2008 precast concrete products - Retaining wall elements, Factory Production Control certificate number: 0086-CPR-650448 & BS EN 13369 B. Tolerances to BS EN 13369 clause 4.3.1.1 C. Finishing Top: Class A Sides: Class A Base: Class A Rear of back wall: Self-Levelled D. Marking: Units shall be indelibly marked to show: mould reference code De-mould date Job reference number and unique product number unit weight (kg)
AlthonDesign	A. Concrete design to EC2 B. Althon have designed the concrete units only, the site conditions should be assessed for suitability by the scheme designer C. Units are designed to withstand a vertical live load surcharge of 10kN/M² D. Weight of soil - 18kN/M² E. Angle of internal friction = 30 Deg. F. Design Life: >120 years Cover Block Size (mm): All Faces 55 Min Cover Size (mm): All Faces 55 Max Cover Size (mm): All Faces 60 Exposure induced by Carbonation: All Faces XC3/4 Corrosion induced by Chloride: XD3 Freeze/thaw attack: XF4 Chemical attack: XA3
AlthonFabrication	A. Manufacture IAW EN 1090-2 EXC CLASS 1 B. Material grade is to be: BS EN 10025 S275 C. Welding carried out IAW EN 1090-2 PARA 7.5.4 - 7.5.18 D. All fillet and butt welds to have a minimum throat thickness of 6mm & joints to be fully welded where possible. E. Ensure vertical flats are fully welded both sides where possible. F. All sharp edges and burrs are to be removed. G. Remove all weld splatter. H. Holes by punching are permitted with reaming. I. Galvanising is carried out after fabrication to BS EN:ISO 1461
AlthonHandrailSpecification	A. Kee Klamp® Galvanised Size 8 Fittings B. Size 8 48.3mm OD 3.2mm Wall Thickness Galvanised Medium Duty Tube to BS EN 10255 C. 360N/m Design Load at stated in BS 8118, BS 6180, BS 6399 & BS 7818, Civil Engineering Specification for the Water Industry (CESWI) 7th Edition Clause 2.60 Handrails & Balusters & The Engineering Equipment and Materials Users' Association (EEMUA) Publication 105 7th Edition Factory Stairways, Ladders and Handrails D. Other design loads available on request E. GRP/FRP Handrails also available
AlthonSpecificationInformation	Opening in back wall cast to suit outside diameter of the pipe work. Invert level of pipe can be set to your specification
AlthonHeadwallMaxPipeSize	Max Pipe Opening PCC = 300mm ID and Max Pipe Opening Pastic/Clayware = 300mm ID
AlthonToeInformation	Our Sewers for Adoption compliant outfall range is available with toe extensions either 300 or 500mm thick with depths ranging from 450 to 1000mm.
AlthonOutfallSafetyGrille	Sewers for Adoption / Sewers for Scotland Outfall Safety Grille - SFA1 300 1. In accordance with Figure C.6 Typical Outfall Safety Grille - for outfalls of 350mm diameter of greater - Sewers for Adoption 7th Edition 2. Material Grade is to be: BS EN 10025 S275 3. All mild steel to be hot dipped galvanised after fabrication 4. Galvanising to BS EN: 1461 5. Welding to BS EN 1011-2:2001 6. Hinged on one side with padlock facility 7. Weight Approx: 37.5kg

Built with: Autodesk Inventor Professional 2018

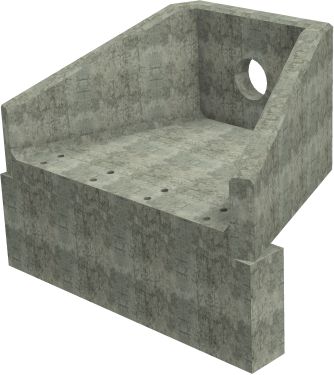

SFA10 B Headwall - 300mm ID pipe - 225mm Invert Level + 700 X 300mm Toe

Example Render

IFC Object

Version: 1
Last Updated: April 23, 2019, 11:36 a.m.

Download IFC Object

Add IFC object to zip

RFA Object

Version: 1
Last Updated: April 23, 2019, 11:36 a.m.

Download RFA Object

Add RFA object to zip

ADSK Object

Version: 1
Last Updated: April 23, 2019, 11:36 a.m.

Download ADSK Object

Add ADSK object to zip

COBie Parameters

Parameter Name	Parameter Value
Name	PrecastConcreteHeadwall_SFA10B_300mmIDPipe_225mmIL_700x300mmT_AlthonLimited
CreatedBy	drawings@althon.co.uk
CreatedOn	2019-04-23T11:36:00
Category	n/a
Description	Precast Concrete Headwall
AssetType	Fixed
Manufacturer	sales@althon.co.uk
ModelNumber	SFA10B
WarrantyGuarantorParts	sales@althon.co.uk
WarrantyDurationParts	n/a
WarrantyGuarantorLabor	n/a
WarrantyDurationLabor	n/a
WarrantyDurationUnit	year
ReplacementCost	n/a
ExpectedLife	>100
DurationUnit	year
WarrantyDescription	n/a
NominalLength	1500
NominalWidth	1000
NominalHeight	1040
ModelReference	Precast Concrete Headwall
Shape	n/a
Size	1500 x 1000 x 1040
Colour	Light Grey
Finish	Steel mould concrete finish
Grade	n/a
Material	Concrete
Constituents	n/a
Features	Lifting points cast into headwall
AccessibilityPerformance	n/a
CodePerformance	BS EN 15258:2008
SustainabilityPerformance	n/a

Althon_General Parameters

Parameter Name	Parameter Value
Author	Althon Limited
BIMObjectName	AlthonLimited_PrecastConcreteHeadwall_SFA10B_300mmIDPipe_225mmIL_700x300mmT
Version	1
LastUpdated	2019-04-23T11:36:00
ADSKCompatible	2X3
RevitCompatible	2018 +
ManufactureName	Althon Limited
ManufacturerURL	www.althon.co.uk
NBSDescription	Precast concrete headwall unit
NBSNote	n/a
NBSOfficeMasterTag	n/a
NBSReference	45-25-40/305
NBSTypeID	n/a
DocumentationLiterature	https://www.althon.co.uk/products/sfa10-b-headwall/detail/
DocumentationInstallationGuide	https://www.althon.co.uk/products/sfa10-b-headwall/detail/
DocumentationTechnical	https://www.althon.co.uk/products/sfa10-b-headwall/detail/
DocumentationCertificates	On request
Uniclass2015code	Pr_20_93_37_65
Uniclass2015Title	Precast concrete headwall units
Uniclass2015Version	Products v1.13
AlthonGeneralNotes	We can cast multiple pipe opening, elliptical, square or rectangular culvert openings into any of our headwalls. We can also cast pipe openings into the wing walls of our headwalls.
AlthonHeadwallInstallation	Units should be bedded on minimum 200mm thick well compacted Class 6A* selected well graded granular material. *Manual of contract documents for Highway Works: Volume (MCHW1) specification for Highway Works, Series 600 (Nov.09). Sit the headwall level or with a slight fall 1:50 from pipe to spill mouth.
AlthonHandling	A. Weight of concrete is based on 2.4 tonne/m³+5% is recommended for sizing lifting equipment B. All lifting points shall be used as specified below C. Unit to be lifted as per lifting diagram
AlthonConcrete	A. Mix ref: Self-compacting DC4/DS4 Mix B. Lifting strength bases on 2 cubes = 20N/mm² C. Characteristic 28 day cube strength = 50N/mm² D. Concrete provides Design Chemical Class 4 (DC4) to special Digest1, Table F2
AlthonReinforcement	A. Reinforcement to BS EN 13369 B. Scheduling, dimensioning, bending & cutting to BS8666 C. Cage to be machine tied with steel wire
AlthonManufacture	A. Manufacture to BS EN 15258:2008 precast concrete products - Retaining wall elements, Factory Production Control certificate number: 0086-CPR-650448 & BS EN 13369 B. Tolerances to BS EN 13369 clause 4.3.1.1 C. Finishing Top: Class A Sides: Class A Base: Class A Rear of back wall: Self-Levelled D. Marking: Units shall be indelibly marked to show: mould reference code De-mould date Job reference number and unique product number unit weight (kg)
AlthonDesign	A. Concrete design to EC2 B. Althon have designed the concrete units only, the site conditions should be assessed for suitability by the scheme designer C. Units are designed to withstand a vertical live load surcharge of 10kN/M² D. Weight of soil - 18kN/M² E. Angle of internal friction = 30 Deg. F. Design Life: >100 years Cover Block Size (mm): All Faces 55 Min Cover Size (mm): All Faces 55 Max Cover Size (mm): All Faces 60 Exposure induced by Carbonation: All Faces XC3/4 Corrosion induced by Chloride: XD3 Freeze/thaw attack: XF4 Chemical attack: XA3
AlthonFabrication	A. Manufacture IAW EN 1090-2 EXC CLASS 1 B. Material grade is to be: BS EN 10025 S275 C. Welding carried out IAW EN 1090-2 PARA 7.5.4 - 7.5.18 D. All fillet and butt welds to have a minimum throat thickness of 6mm & joints to be fully welded where possible. E. Ensure vertical flats are fully welded both sides where possible. F. All sharp edges and burrs are to be removed. G. Remove all weld splatter. H. Holes by punching are permitted with reaming. I. Galvanising is carried out after fabrication to BS EN:ISO 1461
AlthonHeadwallMaxPipeSize	Opening in back wall cast to suit outside diameter of the pipe work. Invert level of pipe can be set to your specification
AlthonHandrailSpecification	Max Pipe Opening PCC = 450mm ID and Max Pipe Opening Pastic/Clayware = 500mm ID
AlthonToeInformation	Our Sewers for Adoption compliant outfall range is available with toe extensions either 300 or 500mm thick with depths ranging from 400 to 1000mm.

Built with: Autodesk Inventor Professional 2018

SFA10 B Headwall - 300mm ID pipe - 225mm Invert Level + 700 X 300mm Toe + 3 Sided Kee Klamp + Sfa1 300 Outfall Safety Grille

IFC Object

Version: 1
Last Updated: July 9, 2019, 9:15 a.m.

Download IFC Object

Add IFC object to zip

ADSK Object

Version: 1
Last Updated: July 9, 2019, 9:15 a.m.

Download ADSK Object

Add ADSK object to zip

RFA Object

Version: 1
Last Updated: July 9, 2019, 9:15 a.m.

Download RFA Object

Add RFA object to zip

COBie Parameters

Parameter Name	Parameter Value
Name	PrecastConcreteHeadwall_SFA10B_300mmIDPipe_225mmIL_700x300mmT_3SKK_SFA1300OSG_AlthonLimited
CreatedBy	drawings@althon.co.uk
CreatedOn	2019-07-09T09:15:00
Category	n/a
Description	Precast Concrete Headwall
AssetType	Fixed
Manufacturer	sales@althon.co.uk
ModelNumber	SFA10B
WarrantyGuarantorParts	sales@althon.co.uk
WarrantyDurationParts	n/a
WarrantyGuarantorLabor	n/a
WarrantyDurationLabor	n/a
WarrantyDurationUnit	year
ReplacementCost	n/a
ExpectedLife	>120
DurationUnit	year
WarrantyDescription	n/a
NominalLength	1500
NominalWidth	1000
NominalHeight	1040
ModelReference	Precast Concrete Headwall
Shape	n/a
Size	1500 x 1000 x 1040
Colour	Light Grey
Finish	Steel mould concrete finish
Grade	n/a
Material	Concrete
Constituents	n/a
Features	Lifting points cast into headwall
AccessibilityPerformance	n/a
CodePerformance	BS EN 15258:2008
SustainabilityPerformance	n/a

Althon_General Parameters

Parameter Name	Parameter Value
Author	Althon Limited
BIMObjectName	AlthonLimited_PrecastConcreteHeadwall_SFA10B_300mmIDPipe_225mmIL_700x300mmT_3SKK_SFA1300OSG
Version	1
LastUpdated	2019-07-09T09:15:00
ADSKCompatible	2X3
RevitCompatible	2018 +
ManufactureName	Althon Limited
ManufacturerURL	www.althon.co.uk
NBSDescription	Precast concrete headwall unit
NBSNote	n/a
NBSOfficeMasterTag	n/a
NBSReference	45-25-40/305
NBSTypeID	n/a
DocumentationLiterature	https://www.althon.co.uk/products/sfa10-b-headwall/detail/
DocumentationInstallationGuide	https://www.althon.co.uk/products/sfa10-b-headwall/detail/
DocumentationTechnical	https://www.althon.co.uk/products/sfa10-b-headwall/detail/
DocumentationCertificates	On request
Uniclass2015code	Pr_20_93_37_65
Uniclass2015Title	Precast concrete headwall units
Uniclass2015Version	Products v1.13
AlthonGeneralNotes	We can cast multiple pipe opening, elliptical, square or rectangular culvert openings into any of our headwalls. We can also cast pipe openings into the wing walls of our headwalls.
AlthonHeadwallInstallation	Units should be bedded on minimum 200mm thick well compacted Class 6A* selected well graded granular material. *Manual of contract documents for Highway Works: Volume (MCHW1) specification for Highway Works, Series 600 (Nov.09). Sit the headwall level or with a slight fall 1:50 from pipe to spill mouth.
AlthonHandling	A. Weight of concrete is based on 2.4 tonne/m³+5% is recommended for sizing lifting equipment B. All lifting points shall be used as specified below C. Unit to be lifted as per lifting diagram
AlthonConcrete	A. Mix ref: Self-compacting DC4/DS4 Mix B. Lifting strength bases on 2 cubes = 20N/mm² C. Characteristic 28 day cube strength = 50N/mm² D. Concrete provides Design Chemical Class 4 (DC4) to special Digest1, Table F2
AlthonReinforcement	A. Reinforcement to BS EN 13369 B. Scheduling, dimensioning, bending & cutting to BS8666 C. Cage to be machine tied with steel wire
AlthonManufacture	A. Manufacture to BS EN 15258:2008 precast concrete products - Retaining wall elements, Factory Production Control certificate number: 0086-CPR-650448 & BS EN 13369 B. Tolerances to BS EN 13369 clause 4.3.1.1 C. Finishing Top: Class A Sides: Class A Base: Class A Rear of back wall: Self-Levelled D. Marking: Units shall be indelibly marked to show: mould reference code De-mould date Job reference number and unique product number unit weight (kg)
AlthonDesign	A. Concrete design to EC2 B. Althon have designed the concrete units only, the site conditions should be assessed for suitability by the scheme designer C. Units are designed to withstand a vertical live load surcharge of 10kN/M² D. Weight of soil - 18kN/M² E. Angle of internal friction = 30 Deg. F. Design Life: >120 years Cover Block Size (mm): All Faces 55 Min Cover Size (mm): All Faces 55 Max Cover Size (mm): All Faces 60 Exposure induced by Carbonation: All Faces XC3/4 Corrosion induced by Chloride: XD3 Freeze/thaw attack: XF4 Chemical attack: XA3
AlthonFabrication	A. Manufacture IAW EN 1090-2 EXC CLASS 1 B. Material grade is to be: BS EN 10025 S275 C. Welding carried out IAW EN 1090-2 PARA 7.5.4 - 7.5.18 D. All fillet and butt welds to have a minimum throat thickness of 6mm & joints to be fully welded where possible. E. Ensure vertical flats are fully welded both sides where possible. F. All sharp edges and burrs are to be removed. G. Remove all weld splatter. H. Holes by punching are permitted with reaming. I. Galvanising is carried out after fabrication to BS EN:ISO 1461
AlthonHandrailSpecification	A. Kee Klamp® Galvanised Size 8 Fittings B. Size 8 48.3mm OD 3.2mm Wall Thickness Galvanised Medium Duty Tube to BS EN 10255 C. 360N/m Design Load at stated in BS 8118, BS 6180, BS 6399 & BS 7818, Civil Engineering Specification for the Water Industry (CESWI) 7th Edition Clause 2.60 Handrails & Balusters & The Engineering Equipment and Materials Users' Association (EEMUA) Publication 105 7th Edition Factory Stairways, Ladders and Handrails D. Other design loads available on request E. GRP/FRP Handrails also available
AlthonSpecificationInformation	Opening in back wall cast to suit outside diameter of the pipe work. Invert level of pipe can be set to your specification
AlthonHeadwallMaxPipeSize	Max Pipe Opening PCC = 300mm ID and Max Pipe Opening Pastic/Clayware = 300mm ID
AlthonToeInformation	Our Sewers for Adoption compliant outfall range is available with toe extensions either 300 or 500mm thick with depths ranging from 450 to 1000mm.
AlthonOutfallSafetyGrille	Sewers for Adoption / Sewers for Scotland Outfall Safety Grille - SFA1 300 1. In accordance with Figure C.6 Typical Outfall Safety Grille - for outfalls of 350mm diameter of greater - Sewers for Adoption 7th Edition 2. Material Grade is to be: BS EN 10025 S275 3. All mild steel to be hot dipped galvanised after fabrication 4. Galvanising to BS EN: 1461 5. Welding to BS EN 1011-2:2001 6. Hinged on one side with padlock facility 7. Weight Approx: 37.5kg

Built with: Autodesk Inventor Professional 2018

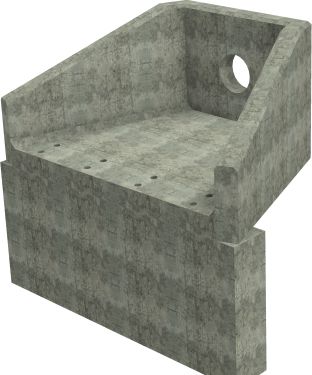

SFA10 B Headwall - 300mm ID pipe - 225mm Invert Level + 1000 x 300mm Toe

Example Render

ADSK Object

Version: 1
Last Updated: April 23, 2019, 11:36 a.m.

Download ADSK Object

Add ADSK object to zip

RFA Object

Version: 1
Last Updated: April 23, 2019, 11:36 a.m.

Download RFA Object

Add RFA object to zip

IFC Object

Version: 1
Last Updated: April 23, 2019, 11:36 a.m.

Download IFC Object

Add IFC object to zip

COBie Parameters

Parameter Name	Parameter Value
Name	PrecastConcreteHeadwall_SFA10B_300mmIDPipe_225mmIL_1000x300mmT_AlthonLimited
CreatedBy	drawings@althon.co.uk
CreatedOn	2019-04-23T11:36:00
Category	n/a
Description	Precast Concrete Headwall
AssetType	Fixed
Manufacturer	sales@althon.co.uk
ModelNumber	SFA10B
WarrantyGuarantorParts	sales@althon.co.uk
WarrantyDurationParts	n/a
WarrantyGuarantorLabor	n/a
WarrantyDurationLabor	n/a
WarrantyDurationUnit	year
ReplacementCost	n/a
ExpectedLife	>100
DurationUnit	year
WarrantyDescription	n/a
NominalLength	1500
NominalWidth	1000
NominalHeight	1040
ModelReference	Precast Concrete Headwall
Shape	n/a
Size	1500 x 1000 x 1040
Colour	Light Grey
Finish	Steel mould concrete finish
Grade	n/a
Material	Concrete
Constituents	n/a
Features	Lifting points cast into headwall
AccessibilityPerformance	n/a
CodePerformance	BS EN 15258:2008
SustainabilityPerformance	n/a

Althon_General Parameters

Parameter Name	Parameter Value
Author	Althon Limited
BIMObjectName	AlthonLimited_PrecastConcreteHeadwall_SFA10B_300mmIDPipe_225mmIL_1000x300mmT
Version	1
LastUpdated	2019-04-23T11:36:00
ADSKCompatible	2X3
RevitCompatible	2018 +
ManufactureName	Althon Limited
ManufacturerURL	www.althon.co.uk
NBSDescription	Precast concrete headwall unit
NBSNote	n/a
NBSOfficeMasterTag	n/a
NBSReference	45-25-40/305
NBSTypeID	n/a
DocumentationLiterature	https://www.althon.co.uk/products/sfa10-b-headwall/detail/
DocumentationInstallationGuide	https://www.althon.co.uk/products/sfa10-b-headwall/detail/
DocumentationTechnical	https://www.althon.co.uk/products/sfa10-b-headwall/detail/
DocumentationCertificates	On request
Uniclass2015code	Pr_20_93_37_65
Uniclass2015Title	Precast concrete headwall units
Uniclass2015Version	Products v1.13
AlthonGeneralNotes	We can cast multiple pipe opening, elliptical, square or rectangular culvert openings into any of our headwalls. We can also cast pipe openings into the wing walls of our headwalls.
AlthonHeadwallInstallation	Units should be bedded on minimum 200mm thick well compacted Class 6A* selected well graded granular material. *Manual of contract documents for Highway Works: Volume (MCHW1) specification for Highway Works, Series 600 (Nov.09). Sit the headwall level or with a slight fall 1:50 from pipe to spill mouth.
AlthonHandling	A. Weight of concrete is based on 2.4 tonne/m³+5% is recommended for sizing lifting equipment B. All lifting points shall be used as specified below C. Unit to be lifted as per lifting diagram
AlthonConcrete	A. Mix ref: Self-compacting DC4/DS4 Mix B. Lifting strength bases on 2 cubes = 20N/mm² C. Characteristic 28 day cube strength = 50N/mm² D. Concrete provides Design Chemical Class 4 (DC4) to special Digest1, Table F2
AlthonReinforcement	A. Reinforcement to BS EN 13369 B. Scheduling, dimensioning, bending & cutting to BS8666 C. Cage to be machine tied with steel wire
AlthonManufacture	A. Manufacture to BS EN 15258:2008 precast concrete products - Retaining wall elements, Factory Production Control certificate number: 0086-CPR-650448 & BS EN 13369 B. Tolerances to BS EN 13369 clause 4.3.1.1 C. Finishing Top: Class A Sides: Class A Base: Class A Rear of back wall: Self-Levelled D. Marking: Units shall be indelibly marked to show: mould reference code De-mould date Job reference number and unique product number unit weight (kg)
AlthonDesign	A. Concrete design to EC2 B. Althon have designed the concrete units only, the site conditions should be assessed for suitability by the scheme designer C. Units are designed to withstand a vertical live load surcharge of 10kN/M² D. Weight of soil - 18kN/M² E. Angle of internal friction = 30 Deg. F. Design Life: >100 years Cover Block Size (mm): All Faces 55 Min Cover Size (mm): All Faces 55 Max Cover Size (mm): All Faces 60 Exposure induced by Carbonation: All Faces XC3/4 Corrosion induced by Chloride: XD3 Freeze/thaw attack: XF4 Chemical attack: XA3
AlthonFabrication	A. Manufacture IAW EN 1090-2 EXC CLASS 1 B. Material grade is to be: BS EN 10025 S275 C. Welding carried out IAW EN 1090-2 PARA 7.5.4 - 7.5.18 D. All fillet and butt welds to have a minimum throat thickness of 6mm & joints to be fully welded where possible. E. Ensure vertical flats are fully welded both sides where possible. F. All sharp edges and burrs are to be removed. G. Remove all weld splatter. H. Holes by punching are permitted with reaming. I. Galvanising is carried out after fabrication to BS EN:ISO 1461
AlthonHeadwallMaxPipeSize	Opening in back wall cast to suit outside diameter of the pipe work. Invert level of pipe can be set to your specification
AlthonHandrailSpecification	Max Pipe Opening PCC = 450mm ID and Max Pipe Opening Pastic/Clayware = 500mm ID
AlthonToeInformation	Our Sewers for Adoption compliant outfall range is available with toe extensions either 300 or 500mm thick with depths ranging from 400 to 1000mm.

Built with: Autodesk Inventor Professional 2018

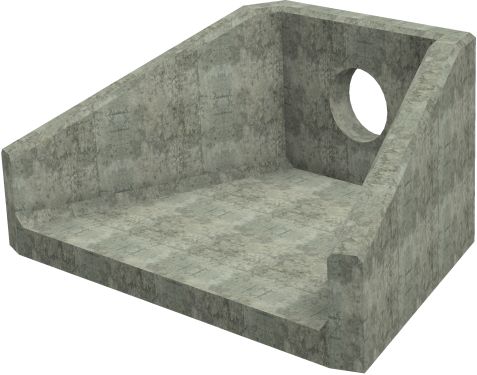

SFA10 B Headwall - 375mm ID pipe - 225mm Invert Level

Example Render

IFC Object

Version: 1
Last Updated: April 23, 2019, 11:36 a.m.

Download IFC Object

Add IFC object to zip

RFA Object

Version: 1
Last Updated: April 23, 2019, 11:36 a.m.

Download RFA Object

Add RFA object to zip

ADSK Object

Version: 1
Last Updated: April 23, 2019, 11:36 a.m.

Download ADSK Object

Add ADSK object to zip

COBie Parameters

Parameter Name	Parameter Value
Name	PrecastConcreteHeadwall_SFA10B_375mmIDPipe_225mmIL_AlthonLimited
CreatedBy	drawings@althon.co.uk
CreatedOn	2019-04-23T11:36:00
Category	n/a
Description	Precast Concrete Headwall
AssetType	Fixed
Manufacturer	sales@althon.co.uk
ModelNumber	SFA10B
WarrantyGuarantorParts	sales@althon.co.uk
WarrantyDurationParts	n/a
WarrantyGuarantorLabor	n/a
WarrantyDurationLabor	n/a
WarrantyDurationUnit	year
ReplacementCost	n/a
ExpectedLife	>100
DurationUnit	year
WarrantyDescription	n/a
NominalLength	1500
NominalWidth	1000
NominalHeight	1040
ModelReference	Precast Concrete Headwall
Shape	n/a
Size	1500 x 1000 x 1040
Colour	Light Grey
Finish	Steel mould concrete finish
Grade	n/a
Material	Concrete
Constituents	n/a
Features	Lifting points cast into headwall
AccessibilityPerformance	n/a
CodePerformance	BS EN 15258:2008
SustainabilityPerformance	n/a

Althon_General Parameters

Parameter Name	Parameter Value
Author	Althon Limited
BIMObjectName	AlthonLimited_PrecastConcreteHeadwall_SFA10B_375mmIDPipe_225mmIL
Version	1
LastUpdated	2019-04-23T11:36:00
ADSKCompatible	2X3
RevitCompatible	2018 +
ManufactureName	Althon Limited
ManufacturerURL	www.althon.co.uk
NBSDescription	Precast concrete headwall unit
NBSNote	n/a
NBSOfficeMasterTag	n/a
NBSReference	45-25-40/305
NBSTypeID	n/a
DocumentationLiterature	https://www.althon.co.uk/products/sfa10-b-headwall/detail/
DocumentationInstallationGuide	https://www.althon.co.uk/products/sfa10-b-headwall/detail/
DocumentationTechnical	https://www.althon.co.uk/products/sfa10-b-headwall/detail/
DocumentationCertificates	On request
Uniclass2015code	Pr_20_93_37_65
Uniclass2015Title	Precast concrete headwall units
Uniclass2015Version	Products v1.13
AlthonGeneralNotes	We can cast multiple pipe opening, elliptical, square or rectangular culvert openings into any of our headwalls. We can also cast pipe openings into the wing walls of our headwalls.
AlthonHeadwallInstallation	Units should be bedded on minimum 200mm thick well compacted Class 6A* selected well graded granular material. *Manual of contract documents for Highway Works: Volume (MCHW1) specification for Highway Works, Series 600 (Nov.09). Sit the headwall level or with a slight fall 1:50 from pipe to spill mouth.
AlthonHandling	A. Weight of concrete is based on 2.4 tonne/m³+5% is recommended for sizing lifting equipment B. All lifting points shall be used as specified below C. Unit to be lifted as per lifting diagram
AlthonConcrete	A. Mix ref: Self-compacting DC4/DS4 Mix B. Lifting strength bases on 2 cubes = 20N/mm² C. Characteristic 28 day cube strength = 50N/mm² D. Concrete provides Design Chemical Class 4 (DC4) to special Digest1, Table F2
AlthonReinforcement	A. Reinforcement to BS EN 13369 B. Scheduling, dimensioning, bending & cutting to BS8666 C. Cage to be machine tied with steel wire
AlthonManufacture	A. Manufacture to BS EN 15258:2008 precast concrete products - Retaining wall elements, Factory Production Control certificate number: 0086-CPR-650448 & BS EN 13369 B. Tolerances to BS EN 13369 clause 4.3.1.1 C. Finishing Top: Class A Sides: Class A Base: Class A Rear of back wall: Self-Levelled D. Marking: Units shall be indelibly marked to show: mould reference code De-mould date Job reference number and unique product number unit weight (kg)
AlthonDesign	A. Concrete design to EC2 B. Althon have designed the concrete units only, the site conditions should be assessed for suitability by the scheme designer C. Units are designed to withstand a vertical live load surcharge of 10kN/M² D. Weight of soil - 18kN/M² E. Angle of internal friction = 30 Deg. F. Design Life: >100 years Cover Block Size (mm): All Faces 55 Min Cover Size (mm): All Faces 55 Max Cover Size (mm): All Faces 60 Exposure induced by Carbonation: All Faces XC3/4 Corrosion induced by Chloride: XD3 Freeze/thaw attack: XF4 Chemical attack: XA3
AlthonFabrication	A. Manufacture IAW EN 1090-2 EXC CLASS 1 B. Material grade is to be: BS EN 10025 S275 C. Welding carried out IAW EN 1090-2 PARA 7.5.4 - 7.5.18 D. All fillet and butt welds to have a minimum throat thickness of 6mm & joints to be fully welded where possible. E. Ensure vertical flats are fully welded both sides where possible. F. All sharp edges and burrs are to be removed. G. Remove all weld splatter. H. Holes by punching are permitted with reaming. I. Galvanising is carried out after fabrication to BS EN:ISO 1461
AlthonHeadwallMaxPipeSize	Opening in back wall cast to suit outside diameter of the pipe work. Invert level of pipe can be set to your specification
AlthonHandrailSpecification	Max Pipe Opening PCC = 450mm ID and Max Pipe Opening Pastic/Clayware = 500mm ID
AlthonToeInformation	Our Sewers for Adoption compliant outfall range is available with toe extensions either 300 or 500mm thick with depths ranging from 400 to 1000mm.

Built with: Autodesk Inventor Professional 2018

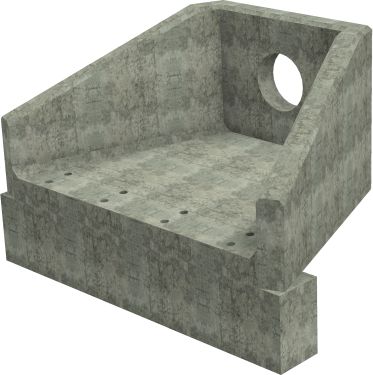

SFA10 B Headwall - 375mm ID pipe - 225mm Invert Level + 450 x 300mm Toe

Example Render

IFC Object

Version: 1
Last Updated: April 23, 2019, 11:36 a.m.

Download IFC Object

Add IFC object to zip

RFA Object

Version: 1
Last Updated: April 23, 2019, 11:36 a.m.

Download RFA Object

Add RFA object to zip

ADSK Object

Version: 1
Last Updated: April 23, 2019, 11:36 a.m.

Download ADSK Object

Add ADSK object to zip

COBie Parameters

Parameter Name	Parameter Value
Name	PrecastConcreteHeadwall_SFA10B_375mmIDPipe_225mmIL_450x300mmT_AlthonLimited
CreatedBy	drawings@althon.co.uk
CreatedOn	2019-04-23T11:36:00
Category	n/a
Description	Precast Concrete Headwall
AssetType	Fixed
Manufacturer	sales@althon.co.uk
ModelNumber	SFA10B
WarrantyGuarantorParts	sales@althon.co.uk
WarrantyDurationParts	n/a
WarrantyGuarantorLabor	n/a
WarrantyDurationLabor	n/a
WarrantyDurationUnit	year
ReplacementCost	n/a
ExpectedLife	>100
DurationUnit	year
WarrantyDescription	n/a
NominalLength	1500
NominalWidth	1000
NominalHeight	1040
ModelReference	Precast Concrete Headwall
Shape	n/a
Size	1500 x 1000 x 1040
Colour	Light Grey
Finish	Steel mould concrete finish
Grade	n/a
Material	Concrete
Constituents	n/a
Features	Lifting points cast into headwall
AccessibilityPerformance	n/a
CodePerformance	BS EN 15258:2008
SustainabilityPerformance	n/a

Althon_General Parameters

Parameter Name	Parameter Value
Author	Althon Limited
BIMObjectName	AlthonLimited_PrecastConcreteHeadwall_SFA10B_375mmIDPipe_225mmIL_450x300mmT
Version	1
LastUpdated	2019-04-23T11:36:00
ADSKCompatible	2X3
RevitCompatible	2018 +
ManufactureName	Althon Limited
ManufacturerURL	www.althon.co.uk
NBSDescription	Precast concrete headwall unit
NBSNote	n/a
NBSOfficeMasterTag	n/a
NBSReference	45-25-40/305
NBSTypeID	n/a
DocumentationLiterature	https://www.althon.co.uk/products/sfa10-b-headwall/detail/
DocumentationInstallationGuide	https://www.althon.co.uk/products/sfa10-b-headwall/detail/
DocumentationTechnical	https://www.althon.co.uk/products/sfa10-b-headwall/detail/
DocumentationCertificates	On request
Uniclass2015code	Pr_20_93_37_65
Uniclass2015Title	Precast concrete headwall units
Uniclass2015Version	Products v1.13
AlthonGeneralNotes	We can cast multiple pipe opening, elliptical, square or rectangular culvert openings into any of our headwalls. We can also cast pipe openings into the wing walls of our headwalls.
AlthonHeadwallInstallation	Units should be bedded on minimum 200mm thick well compacted Class 6A* selected well graded granular material. *Manual of contract documents for Highway Works: Volume (MCHW1) specification for Highway Works, Series 600 (Nov.09). Sit the headwall level or with a slight fall 1:50 from pipe to spill mouth.
AlthonHandling	A. Weight of concrete is based on 2.4 tonne/m³+5% is recommended for sizing lifting equipment B. All lifting points shall be used as specified below C. Unit to be lifted as per lifting diagram
AlthonConcrete	A. Mix ref: Self-compacting DC4/DS4 Mix B. Lifting strength bases on 2 cubes = 20N/mm² C. Characteristic 28 day cube strength = 50N/mm² D. Concrete provides Design Chemical Class 4 (DC4) to special Digest1, Table F2
AlthonReinforcement	A. Reinforcement to BS EN 13369 B. Scheduling, dimensioning, bending & cutting to BS8666 C. Cage to be machine tied with steel wire
AlthonManufacture	A. Manufacture to BS EN 15258:2008 precast concrete products - Retaining wall elements, Factory Production Control certificate number: 0086-CPR-650448 & BS EN 13369 B. Tolerances to BS EN 13369 clause 4.3.1.1 C. Finishing Top: Class A Sides: Class A Base: Class A Rear of back wall: Self-Levelled D. Marking: Units shall be indelibly marked to show: mould reference code De-mould date Job reference number and unique product number unit weight (kg)
AlthonDesign	A. Concrete design to EC2 B. Althon have designed the concrete units only, the site conditions should be assessed for suitability by the scheme designer C. Units are designed to withstand a vertical live load surcharge of 10kN/M² D. Weight of soil - 18kN/M² E. Angle of internal friction = 30 Deg. F. Design Life: >100 years Cover Block Size (mm): All Faces 55 Min Cover Size (mm): All Faces 55 Max Cover Size (mm): All Faces 60 Exposure induced by Carbonation: All Faces XC3/4 Corrosion induced by Chloride: XD3 Freeze/thaw attack: XF4 Chemical attack: XA3
AlthonFabrication	A. Manufacture IAW EN 1090-2 EXC CLASS 1 B. Material grade is to be: BS EN 10025 S275 C. Welding carried out IAW EN 1090-2 PARA 7.5.4 - 7.5.18 D. All fillet and butt welds to have a minimum throat thickness of 6mm & joints to be fully welded where possible. E. Ensure vertical flats are fully welded both sides where possible. F. All sharp edges and burrs are to be removed. G. Remove all weld splatter. H. Holes by punching are permitted with reaming. I. Galvanising is carried out after fabrication to BS EN:ISO 1461
AlthonHeadwallMaxPipeSize	Opening in back wall cast to suit outside diameter of the pipe work. Invert level of pipe can be set to your specification
AlthonHandrailSpecification	Max Pipe Opening PCC = 450mm ID and Max Pipe Opening Pastic/Clayware = 500mm ID
AlthonToeInformation	Our Sewers for Adoption compliant outfall range is available with toe extensions either 300 or 500mm thick with depths ranging from 400 to 1000mm.

Built with: Autodesk Inventor Professional 2018

SFA10 B Headwall - 375mm ID pipe - 225mm Invert Level + 450 x 300mm Toe + 3 Sided Kee Klamp + Sfa1 375 Outfall Safety Grille

IFC Object

Version: 1
Last Updated: July 9, 2019, 9:15 a.m.

Download IFC Object

Add IFC object to zip

ADSK Object

Version: 1
Last Updated: July 9, 2019, 9:15 a.m.

Download ADSK Object

Add ADSK object to zip

RFA Object

Version: 1
Last Updated: July 9, 2019, 9:15 a.m.

Download RFA Object

Add RFA object to zip

COBie Parameters

Parameter Name	Parameter Value
Name	PrecastConcreteHeadwall_SFA10B_375mmIDPipe_225mmIL_450x300mmT_3SKK_SFA1375OSG_AlthonLimited
CreatedBy	drawings@althon.co.uk
CreatedOn	2019-07-09T09:15:00
Category	n/a
Description	Precast Concrete Headwall
AssetType	Fixed
Manufacturer	sales@althon.co.uk
ModelNumber	SFA10B
WarrantyGuarantorParts	sales@althon.co.uk
WarrantyDurationParts	n/a
WarrantyGuarantorLabor	n/a
WarrantyDurationLabor	n/a
WarrantyDurationUnit	year
ReplacementCost	n/a
ExpectedLife	>120
DurationUnit	year
WarrantyDescription	n/a
NominalLength	1500
NominalWidth	1000
NominalHeight	1040
ModelReference	Precast Concrete Headwall
Shape	n/a
Size	1500 x 1000 x 1040
Colour	Light Grey
Finish	Steel mould concrete finish
Grade	n/a
Material	Concrete
Constituents	n/a
Features	Lifting points cast into headwall
AccessibilityPerformance	n/a
CodePerformance	BS EN 15258:2008
SustainabilityPerformance	n/a

Althon_General Parameters

Parameter Name	Parameter Value
Author	Althon Limited
BIMObjectName	AlthonLimited_PrecastConcreteHeadwall_SFA10B_375mmIDPipe_225mmIL_450x300mmT_3SKK_SFA1375OSG
Version	1
LastUpdated	2019-07-09T09:15:00
ADSKCompatible	2X3
RevitCompatible	2018 +
ManufactureName	Althon Limited
ManufacturerURL	www.althon.co.uk
NBSDescription	Precast concrete headwall unit
NBSNote	n/a
NBSOfficeMasterTag	n/a
NBSReference	45-25-40/305
NBSTypeID	n/a
DocumentationLiterature	https://www.althon.co.uk/products/sfa10-b-headwall/detail/
DocumentationInstallationGuide	https://www.althon.co.uk/products/sfa10-b-headwall/detail/
DocumentationTechnical	https://www.althon.co.uk/products/sfa10-b-headwall/detail/
DocumentationCertificates	On request
Uniclass2015code	Pr_20_93_37_65
Uniclass2015Title	Precast concrete headwall units
Uniclass2015Version	Products v1.13
AlthonGeneralNotes	We can cast multiple pipe opening, elliptical, square or rectangular culvert openings into any of our headwalls. We can also cast pipe openings into the wing walls of our headwalls.
AlthonHeadwallInstallation	Units should be bedded on minimum 200mm thick well compacted Class 6A* selected well graded granular material. *Manual of contract documents for Highway Works: Volume (MCHW1) specification for Highway Works, Series 600 (Nov.09). Sit the headwall level or with a slight fall 1:50 from pipe to spill mouth.
AlthonHandling	A. Weight of concrete is based on 2.4 tonne/m³+5% is recommended for sizing lifting equipment B. All lifting points shall be used as specified below C. Unit to be lifted as per lifting diagram
AlthonConcrete	A. Mix ref: Self-compacting DC4/DS4 Mix B. Lifting strength bases on 2 cubes = 20N/mm² C. Characteristic 28 day cube strength = 50N/mm² D. Concrete provides Design Chemical Class 4 (DC4) to special Digest1, Table F2
AlthonReinforcement	A. Reinforcement to BS EN 13369 B. Scheduling, dimensioning, bending & cutting to BS8666 C. Cage to be machine tied with steel wire
AlthonManufacture	A. Manufacture to BS EN 15258:2008 precast concrete products - Retaining wall elements, Factory Production Control certificate number: 0086-CPR-650448 & BS EN 13369 B. Tolerances to BS EN 13369 clause 4.3.1.1 C. Finishing Top: Class A Sides: Class A Base: Class A Rear of back wall: Self-Levelled D. Marking: Units shall be indelibly marked to show: mould reference code De-mould date Job reference number and unique product number unit weight (kg)
AlthonDesign	A. Concrete design to EC2 B. Althon have designed the concrete units only, the site conditions should be assessed for suitability by the scheme designer C. Units are designed to withstand a vertical live load surcharge of 10kN/M² D. Weight of soil - 18kN/M² E. Angle of internal friction = 30 Deg. F. Design Life: >120 years Cover Block Size (mm): All Faces 55 Min Cover Size (mm): All Faces 55 Max Cover Size (mm): All Faces 60 Exposure induced by Carbonation: All Faces XC3/4 Corrosion induced by Chloride: XD3 Freeze/thaw attack: XF4 Chemical attack: XA3
AlthonFabrication	A. Manufacture IAW EN 1090-2 EXC CLASS 1 B. Material grade is to be: BS EN 10025 S275 C. Welding carried out IAW EN 1090-2 PARA 7.5.4 - 7.5.18 D. All fillet and butt welds to have a minimum throat thickness of 6mm & joints to be fully welded where possible. E. Ensure vertical flats are fully welded both sides where possible. F. All sharp edges and burrs are to be removed. G. Remove all weld splatter. H. Holes by punching are permitted with reaming. I. Galvanising is carried out after fabrication to BS EN:ISO 1461
AlthonHandrailSpecification	A. Kee Klamp® Galvanised Size 8 Fittings B. Size 8 48.3mm OD 3.2mm Wall Thickness Galvanised Medium Duty Tube to BS EN 10255 C. 360N/m Design Load at stated in BS 8118, BS 6180, BS 6399 & BS 7818, Civil Engineering Specification for the Water Industry (CESWI) 7th Edition Clause 2.60 Handrails & Balusters & The Engineering Equipment and Materials Users' Association (EEMUA) Publication 105 7th Edition Factory Stairways, Ladders and Handrails D. Other design loads available on request E. GRP/FRP Handrails also available
AlthonSpecificationInformation	Opening in back wall cast to suit outside diameter of the pipe work. Invert level of pipe can be set to your specification
AlthonHeadwallMaxPipeSize	Max Pipe Opening PCC = 300mm ID and Max Pipe Opening Pastic/Clayware = 300mm ID
AlthonToeInformation	Our Sewers for Adoption compliant outfall range is available with toe extensions either 300 or 500mm thick with depths ranging from 450 to 1000mm.
AlthonOutfallSafetyGrille	Sewers for Adoption / Sewers for Scotland Outfall Safety Grille - SFA1 375 1. In accordance with Figure C.6 Typical Outfall Safety Grille - for outfalls of 350mm diameter of greater - Sewers for Adoption 7th Edition 2. Material Grade is to be: BS EN 10025 S275 3. All mild steel to be hot dipped galvanised after fabrication 4. Galvanising to BS EN: 1461 5. Welding to BS EN 1011-2:2001 6. Hinged on one side with padlock facility 7. Weight Approx: 50kg

Built with: Autodesk Inventor Professional 2018

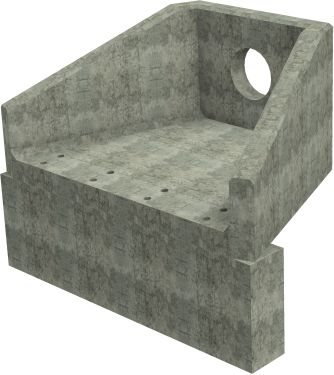

SFA10 B Headwall - 375mm ID pipe - 225mm Invert Level + 700 X 300mm Toe

Example Render

RFA Object

Version: 1
Last Updated: April 23, 2019, 11:36 a.m.

Download RFA Object

Add RFA object to zip

ADSK Object

Version: 1
Last Updated: April 23, 2019, 11:36 a.m.

Download ADSK Object

Add ADSK object to zip

IFC Object

Version: 1
Last Updated: April 23, 2019, 11:36 a.m.

Download IFC Object

Add IFC object to zip

COBie Parameters

Parameter Name	Parameter Value
Name	PrecastConcreteHeadwall_SFA10B_375mmIDPipe_225mmIL_700x300mmT_AlthonLimited
CreatedBy	drawings@althon.co.uk
CreatedOn	2019-04-23T11:36:00
Category	n/a
Description	Precast Concrete Headwall
AssetType	Fixed
Manufacturer	sales@althon.co.uk
ModelNumber	SFA10B
WarrantyGuarantorParts	sales@althon.co.uk
WarrantyDurationParts	n/a
WarrantyGuarantorLabor	n/a
WarrantyDurationLabor	n/a
WarrantyDurationUnit	year
ReplacementCost	n/a
ExpectedLife	>100
DurationUnit	year
WarrantyDescription	n/a
NominalLength	1500
NominalWidth	1000
NominalHeight	1040
ModelReference	Precast Concrete Headwall
Shape	n/a
Size	1500 x 1000 x 1040
Colour	Light Grey
Finish	Steel mould concrete finish
Grade	n/a
Material	Concrete
Constituents	n/a
Features	Lifting points cast into headwall
AccessibilityPerformance	n/a
CodePerformance	BS EN 15258:2008
SustainabilityPerformance	n/a

Althon_General Parameters

Parameter Name	Parameter Value
Author	Althon Limited
BIMObjectName	AlthonLimited_PrecastConcreteHeadwall_SFA10B_375mmIDPipe_225mmIL_700x300mmT
Version	1
LastUpdated	2019-04-23T11:36:00
ADSKCompatible	2X3
RevitCompatible	2018 +
ManufactureName	Althon Limited
ManufacturerURL	www.althon.co.uk
NBSDescription	Precast concrete headwall unit
NBSNote	n/a
NBSOfficeMasterTag	n/a
NBSReference	45-25-40/305
NBSTypeID	n/a
DocumentationLiterature	https://www.althon.co.uk/products/sfa10-b-headwall/detail/
DocumentationInstallationGuide	https://www.althon.co.uk/products/sfa10-b-headwall/detail/
DocumentationTechnical	https://www.althon.co.uk/products/sfa10-b-headwall/detail/
DocumentationCertificates	On request
Uniclass2015code	Pr_20_93_37_65
Uniclass2015Title	Precast concrete headwall units
Uniclass2015Version	Products v1.13
AlthonGeneralNotes	We can cast multiple pipe opening, elliptical, square or rectangular culvert openings into any of our headwalls. We can also cast pipe openings into the wing walls of our headwalls.
AlthonHeadwallInstallation	Units should be bedded on minimum 200mm thick well compacted Class 6A* selected well graded granular material. *Manual of contract documents for Highway Works: Volume (MCHW1) specification for Highway Works, Series 600 (Nov.09). Sit the headwall level or with a slight fall 1:50 from pipe to spill mouth.
AlthonHandling	A. Weight of concrete is based on 2.4 tonne/m³+5% is recommended for sizing lifting equipment B. All lifting points shall be used as specified below C. Unit to be lifted as per lifting diagram
AlthonConcrete	A. Mix ref: Self-compacting DC4/DS4 Mix B. Lifting strength bases on 2 cubes = 20N/mm² C. Characteristic 28 day cube strength = 50N/mm² D. Concrete provides Design Chemical Class 4 (DC4) to special Digest1, Table F2
AlthonReinforcement	A. Reinforcement to BS EN 13369 B. Scheduling, dimensioning, bending & cutting to BS8666 C. Cage to be machine tied with steel wire
AlthonManufacture	A. Manufacture to BS EN 15258:2008 precast concrete products - Retaining wall elements, Factory Production Control certificate number: 0086-CPR-650448 & BS EN 13369 B. Tolerances to BS EN 13369 clause 4.3.1.1 C. Finishing Top: Class A Sides: Class A Base: Class A Rear of back wall: Self-Levelled D. Marking: Units shall be indelibly marked to show: mould reference code De-mould date Job reference number and unique product number unit weight (kg)
AlthonDesign	A. Concrete design to EC2 B. Althon have designed the concrete units only, the site conditions should be assessed for suitability by the scheme designer C. Units are designed to withstand a vertical live load surcharge of 10kN/M² D. Weight of soil - 18kN/M² E. Angle of internal friction = 30 Deg. F. Design Life: >100 years Cover Block Size (mm): All Faces 55 Min Cover Size (mm): All Faces 55 Max Cover Size (mm): All Faces 60 Exposure induced by Carbonation: All Faces XC3/4 Corrosion induced by Chloride: XD3 Freeze/thaw attack: XF4 Chemical attack: XA3
AlthonFabrication	A. Manufacture IAW EN 1090-2 EXC CLASS 1 B. Material grade is to be: BS EN 10025 S275 C. Welding carried out IAW EN 1090-2 PARA 7.5.4 - 7.5.18 D. All fillet and butt welds to have a minimum throat thickness of 6mm & joints to be fully welded where possible. E. Ensure vertical flats are fully welded both sides where possible. F. All sharp edges and burrs are to be removed. G. Remove all weld splatter. H. Holes by punching are permitted with reaming. I. Galvanising is carried out after fabrication to BS EN:ISO 1461
AlthonHeadwallMaxPipeSize	Opening in back wall cast to suit outside diameter of the pipe work. Invert level of pipe can be set to your specification
AlthonHandrailSpecification	Max Pipe Opening PCC = 450mm ID and Max Pipe Opening Pastic/Clayware = 500mm ID
AlthonToeInformation	Our Sewers for Adoption compliant outfall range is available with toe extensions either 300 or 500mm thick with depths ranging from 400 to 1000mm.

Built with: Autodesk Inventor Professional 2018

SFA10 B Headwall - 375mm ID pipe - 225mm Invert Level + 700 X 300mm Toe + 3 Sided Kee Klamp + Sfa1 375 Outfall Safety Grille

IFC Object

Version: 1
Last Updated: July 9, 2019, 9:15 a.m.

Download IFC Object

Add IFC object to zip

ADSK Object

Version: 1
Last Updated: July 9, 2019, 9:15 a.m.

Download ADSK Object

Add ADSK object to zip

RFA Object

Version: 1
Last Updated: July 9, 2019, 9:15 a.m.

Download RFA Object

Add RFA object to zip

COBie Parameters

Parameter Name	Parameter Value
Name	PrecastConcreteHeadwall_SFA10B_375mmIDPipe_225mmIL_700x300mmT_3SKK_SFA1375OSG_AlthonLimited
CreatedBy	drawings@althon.co.uk
CreatedOn	2019-07-09T09:15:00
Category	n/a
Description	Precast Concrete Headwall
AssetType	Fixed
Manufacturer	sales@althon.co.uk
ModelNumber	SFA10B
WarrantyGuarantorParts	sales@althon.co.uk
WarrantyDurationParts	n/a
WarrantyGuarantorLabor	n/a
WarrantyDurationLabor	n/a
WarrantyDurationUnit	year
ReplacementCost	n/a
ExpectedLife	>120
DurationUnit	year
WarrantyDescription	n/a
NominalLength	1500
NominalWidth	1000
NominalHeight	1040
ModelReference	Precast Concrete Headwall
Shape	n/a
Size	1500 x 1000 x 1040
Colour	Light Grey
Finish	Steel mould concrete finish
Grade	n/a
Material	Concrete
Constituents	n/a
Features	Lifting points cast into headwall
AccessibilityPerformance	n/a
CodePerformance	BS EN 15258:2008
SustainabilityPerformance	n/a

Althon_General Parameters

Parameter Name	Parameter Value
Author	Althon Limited
BIMObjectName	AlthonLimited_PrecastConcreteHeadwall_SFA10B_375mmIDPipe_225mmIL_700x300mmT_3SKK_SFA1375OSG
Version	1
LastUpdated	2019-07-09T09:15:00
ADSKCompatible	2X3
RevitCompatible	2018 +
ManufactureName	Althon Limited
ManufacturerURL	www.althon.co.uk
NBSDescription	Precast concrete headwall unit
NBSNote	n/a
NBSOfficeMasterTag	n/a
NBSReference	45-25-40/305
NBSTypeID	n/a
DocumentationLiterature	https://www.althon.co.uk/products/sfa10-b-headwall/detail/
DocumentationInstallationGuide	https://www.althon.co.uk/products/sfa10-b-headwall/detail/
DocumentationTechnical	https://www.althon.co.uk/products/sfa10-b-headwall/detail/
DocumentationCertificates	On request
Uniclass2015code	Pr_20_93_37_65
Uniclass2015Title	Precast concrete headwall units
Uniclass2015Version	Products v1.13
AlthonGeneralNotes	We can cast multiple pipe opening, elliptical, square or rectangular culvert openings into any of our headwalls. We can also cast pipe openings into the wing walls of our headwalls.
AlthonHeadwallInstallation	Units should be bedded on minimum 200mm thick well compacted Class 6A* selected well graded granular material. *Manual of contract documents for Highway Works: Volume (MCHW1) specification for Highway Works, Series 600 (Nov.09). Sit the headwall level or with a slight fall 1:50 from pipe to spill mouth.
AlthonHandling	A. Weight of concrete is based on 2.4 tonne/m³+5% is recommended for sizing lifting equipment B. All lifting points shall be used as specified below C. Unit to be lifted as per lifting diagram
AlthonConcrete	A. Mix ref: Self-compacting DC4/DS4 Mix B. Lifting strength bases on 2 cubes = 20N/mm² C. Characteristic 28 day cube strength = 50N/mm² D. Concrete provides Design Chemical Class 4 (DC4) to special Digest1, Table F2
AlthonReinforcement	A. Reinforcement to BS EN 13369 B. Scheduling, dimensioning, bending & cutting to BS8666 C. Cage to be machine tied with steel wire
AlthonManufacture	A. Manufacture to BS EN 15258:2008 precast concrete products - Retaining wall elements, Factory Production Control certificate number: 0086-CPR-650448 & BS EN 13369 B. Tolerances to BS EN 13369 clause 4.3.1.1 C. Finishing Top: Class A Sides: Class A Base: Class A Rear of back wall: Self-Levelled D. Marking: Units shall be indelibly marked to show: mould reference code De-mould date Job reference number and unique product number unit weight (kg)
AlthonDesign	A. Concrete design to EC2 B. Althon have designed the concrete units only, the site conditions should be assessed for suitability by the scheme designer C. Units are designed to withstand a vertical live load surcharge of 10kN/M² D. Weight of soil - 18kN/M² E. Angle of internal friction = 30 Deg. F. Design Life: >120 years Cover Block Size (mm): All Faces 55 Min Cover Size (mm): All Faces 55 Max Cover Size (mm): All Faces 60 Exposure induced by Carbonation: All Faces XC3/4 Corrosion induced by Chloride: XD3 Freeze/thaw attack: XF4 Chemical attack: XA3
AlthonFabrication	A. Manufacture IAW EN 1090-2 EXC CLASS 1 B. Material grade is to be: BS EN 10025 S275 C. Welding carried out IAW EN 1090-2 PARA 7.5.4 - 7.5.18 D. All fillet and butt welds to have a minimum throat thickness of 6mm & joints to be fully welded where possible. E. Ensure vertical flats are fully welded both sides where possible. F. All sharp edges and burrs are to be removed. G. Remove all weld splatter. H. Holes by punching are permitted with reaming. I. Galvanising is carried out after fabrication to BS EN:ISO 1461
AlthonHandrailSpecification	A. Kee Klamp® Galvanised Size 8 Fittings B. Size 8 48.3mm OD 3.2mm Wall Thickness Galvanised Medium Duty Tube to BS EN 10255 C. 360N/m Design Load at stated in BS 8118, BS 6180, BS 6399 & BS 7818, Civil Engineering Specification for the Water Industry (CESWI) 7th Edition Clause 2.60 Handrails & Balusters & The Engineering Equipment and Materials Users' Association (EEMUA) Publication 105 7th Edition Factory Stairways, Ladders and Handrails D. Other design loads available on request E. GRP/FRP Handrails also available
AlthonSpecificationInformation	Opening in back wall cast to suit outside diameter of the pipe work. Invert level of pipe can be set to your specification
AlthonHeadwallMaxPipeSize	Max Pipe Opening PCC = 300mm ID and Max Pipe Opening Pastic/Clayware = 300mm ID
AlthonToeInformation	Our Sewers for Adoption compliant outfall range is available with toe extensions either 300 or 500mm thick with depths ranging from 450 to 1000mm.
AlthonOutfallSafetyGrille	Sewers for Adoption / Sewers for Scotland Outfall Safety Grille - SFA1 375 1. In accordance with Figure C.6 Typical Outfall Safety Grille - for outfalls of 350mm diameter of greater - Sewers for Adoption 7th Edition 2. Material Grade is to be: BS EN 10025 S275 3. All mild steel to be hot dipped galvanised after fabrication 4. Galvanising to BS EN: 1461 5. Welding to BS EN 1011-2:2001 6. Hinged on one side with padlock facility 7. Weight Approx: 50kg

Built with: Autodesk Inventor Professional 2018

SFA10 B Headwall - 375mm ID pipe - 225mm Invert Level + 1000 x 300mm Toe

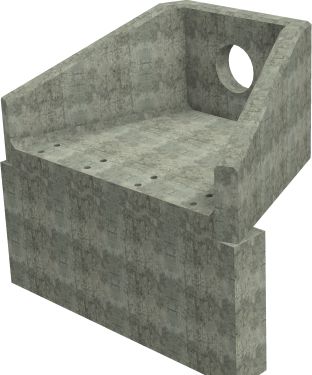

Example Render

RFA Object

Version: 1
Last Updated: April 23, 2019, 11:36 a.m.

Download RFA Object

Add RFA object to zip

ADSK Object

Version: 1
Last Updated: April 23, 2019, 11:36 a.m.

Download ADSK Object

Add ADSK object to zip

IFC Object

Version: 1
Last Updated: April 23, 2019, 11:36 a.m.

Download IFC Object

Add IFC object to zip

COBie Parameters

Parameter Name	Parameter Value
Name	PrecastConcreteHeadwall_SFA10B_375mmIDPipe_225mmIL_1000x300mmT_AlthonLimited
CreatedBy	drawings@althon.co.uk
CreatedOn	2019-04-23T11:36:00
Category	n/a
Description	Precast Concrete Headwall
AssetType	Fixed
Manufacturer	sales@althon.co.uk
ModelNumber	SFA10B
WarrantyGuarantorParts	sales@althon.co.uk
WarrantyDurationParts	n/a
WarrantyGuarantorLabor	n/a
WarrantyDurationLabor	n/a
WarrantyDurationUnit	year
ReplacementCost	n/a
ExpectedLife	>100
DurationUnit	year
WarrantyDescription	n/a
NominalLength	1500
NominalWidth	1000
NominalHeight	1040
ModelReference	Precast Concrete Headwall
Shape	n/a
Size	1500 x 1000 x 1040
Colour	Light Grey
Finish	Steel mould concrete finish
Grade	n/a
Material	Concrete
Constituents	n/a
Features	Lifting points cast into headwall
AccessibilityPerformance	n/a
CodePerformance	BS EN 15258:2008
SustainabilityPerformance	n/a

Althon_General Parameters

Parameter Name	Parameter Value
Author	Althon Limited
BIMObjectName	AlthonLimited_PrecastConcreteHeadwall_SFA10B_375mmIDPipe_225mmIL_1000x300mmT
Version	1
LastUpdated	2019-04-23T11:36:00
ADSKCompatible	2X3
RevitCompatible	2018 +
ManufactureName	Althon Limited
ManufacturerURL	www.althon.co.uk
NBSDescription	Precast concrete headwall unit
NBSNote	n/a
NBSOfficeMasterTag	n/a
NBSReference	45-25-40/305
NBSTypeID	n/a
DocumentationLiterature	https://www.althon.co.uk/products/sfa10-b-headwall/detail/
DocumentationInstallationGuide	https://www.althon.co.uk/products/sfa10-b-headwall/detail/
DocumentationTechnical	https://www.althon.co.uk/products/sfa10-b-headwall/detail/
DocumentationCertificates	On request
Uniclass2015code	Pr_20_93_37_65
Uniclass2015Title	Precast concrete headwall units
Uniclass2015Version	Products v1.13
AlthonGeneralNotes	We can cast multiple pipe opening, elliptical, square or rectangular culvert openings into any of our headwalls. We can also cast pipe openings into the wing walls of our headwalls.
AlthonHeadwallInstallation	Units should be bedded on minimum 200mm thick well compacted Class 6A* selected well graded granular material. *Manual of contract documents for Highway Works: Volume (MCHW1) specification for Highway Works, Series 600 (Nov.09). Sit the headwall level or with a slight fall 1:50 from pipe to spill mouth.
AlthonHandling	A. Weight of concrete is based on 2.4 tonne/m³+5% is recommended for sizing lifting equipment B. All lifting points shall be used as specified below C. Unit to be lifted as per lifting diagram
AlthonConcrete	A. Mix ref: Self-compacting DC4/DS4 Mix B. Lifting strength bases on 2 cubes = 20N/mm² C. Characteristic 28 day cube strength = 50N/mm² D. Concrete provides Design Chemical Class 4 (DC4) to special Digest1, Table F2
AlthonReinforcement	A. Reinforcement to BS EN 13369 B. Scheduling, dimensioning, bending & cutting to BS8666 C. Cage to be machine tied with steel wire
AlthonManufacture	A. Manufacture to BS EN 15258:2008 precast concrete products - Retaining wall elements, Factory Production Control certificate number: 0086-CPR-650448 & BS EN 13369 B. Tolerances to BS EN 13369 clause 4.3.1.1 C. Finishing Top: Class A Sides: Class A Base: Class A Rear of back wall: Self-Levelled D. Marking: Units shall be indelibly marked to show: mould reference code De-mould date Job reference number and unique product number unit weight (kg)
AlthonDesign	A. Concrete design to EC2 B. Althon have designed the concrete units only, the site conditions should be assessed for suitability by the scheme designer C. Units are designed to withstand a vertical live load surcharge of 10kN/M² D. Weight of soil - 18kN/M² E. Angle of internal friction = 30 Deg. F. Design Life: >100 years Cover Block Size (mm): All Faces 55 Min Cover Size (mm): All Faces 55 Max Cover Size (mm): All Faces 60 Exposure induced by Carbonation: All Faces XC3/4 Corrosion induced by Chloride: XD3 Freeze/thaw attack: XF4 Chemical attack: XA3
AlthonFabrication	A. Manufacture IAW EN 1090-2 EXC CLASS 1 B. Material grade is to be: BS EN 10025 S275 C. Welding carried out IAW EN 1090-2 PARA 7.5.4 - 7.5.18 D. All fillet and butt welds to have a minimum throat thickness of 6mm & joints to be fully welded where possible. E. Ensure vertical flats are fully welded both sides where possible. F. All sharp edges and burrs are to be removed. G. Remove all weld splatter. H. Holes by punching are permitted with reaming. I. Galvanising is carried out after fabrication to BS EN:ISO 1461
AlthonHeadwallMaxPipeSize	Opening in back wall cast to suit outside diameter of the pipe work. Invert level of pipe can be set to your specification
AlthonHandrailSpecification	Max Pipe Opening PCC = 450mm ID and Max Pipe Opening Pastic/Clayware = 500mm ID
AlthonToeInformation	Our Sewers for Adoption compliant outfall range is available with toe extensions either 300 or 500mm thick with depths ranging from 400 to 1000mm.

Built with: Autodesk Inventor Professional 2018

SFA10 B Headwall

Filters for SFA10 B Headwall Downloads. To Download CAD and PDF Files Please Register or Login

All Available Downloads for SFA10 B Headwall - Page 1 of 22

BIM Objects

Example Render

RFA Object

ADSK Object

IFC Object

COBie Parameters

Althon_General Parameters

Example Render

RFA Object

ADSK Object

IFC Object

COBie Parameters

Althon_General Parameters

Example Render

RFA Object

ADSK Object

IFC Object

COBie Parameters

Althon_General Parameters

Example Render

ADSK Object

RFA Object

IFC Object

COBie Parameters

Althon_General Parameters

Example Render

RFA Object

ADSK Object

IFC Object

COBie Parameters

Althon_General Parameters

Example Render

IFC Object

ADSK Object

RFA Object

COBie Parameters

Althon_General Parameters

IFC Object

ADSK Object

RFA Object

COBie Parameters

Althon_General Parameters

Example Render

IFC Object

RFA Object

ADSK Object

COBie Parameters

Althon_General Parameters

IFC Object

ADSK Object

RFA Object

COBie Parameters

Althon_General Parameters

Example Render

ADSK Object

RFA Object

IFC Object

COBie Parameters

Althon_General Parameters

Example Render

IFC Object

RFA Object

ADSK Object

COBie Parameters

Althon_General Parameters

Example Render

IFC Object

RFA Object

ADSK Object

COBie Parameters

Althon_General Parameters

IFC Object

ADSK Object

RFA Object

COBie Parameters

Althon_General Parameters

Example Render
