RSFA12F Rectangular Headwall

SSG Compliant

BIM Available

Download Datasheets

RSFA12F Rectangular Precast Headwalls are Sewers for Adoption compliant precast concrete headwalls for outfalls discharging into ponds, swales, ditches beaches and rivers. RSFA precast headwalls come with the option of two thicknesses of toe, 300mm and 500mm, each of which is available in three depths. Althon RSFA12F rectangular precast headwalls have horizontal wingwalls and are suitable for use with plastic or clay pipework up to 225mm. Althon RSFA12F precast headwall units can be pre-fitted with a range of accessories such as flap valves, penstocks, Kee Klamp® handrails and a selection of gratings depending on the application.

Our RSFA12F precast headwalls are manufactured in accordance with Severn Trent Water Standard detail STD6002. All RSFA Headwalls are cast with the opening in the back wall to suit the size and type of pipe being used at the invert level required. The RSFA12F headwall weighs 1980kg.

If you require any assistance or more information please contact us by phone on 01603 488700 or by email sales@althon.co.uk

RSFA12F Rectangular Headwall line drawing

As standard our headwalls have a natural concrete finish.
We can offer coloured headwalls in 4 colours but the final shade is affected by many influences.

Our Headwall Products are available in a range of colours

Natural

Cotswold

Agate

Raven Grey

Everglade

Product Name

Max Pipe Opening PCC

Max Pipe Opening Plastic / C'ware

Backwall Height

Approx Headwall Weight (kg)

RSFA12F Rectangular Headwall

225

775

1980

All Available Downloads for RSFA12F Rectangular Headwall - Page 1 of 15

You can select multiple files below to be added to a single zip file, your selections will be retained across different Headwalls

Title

PDF

CAD

Add to Zip File

RSFA12F Rectangular Headwall

Parameter Name	Parameter Value
Name	PrecastConcreteHeadwall_RSFA12F_150mmIDPipe_225mmIL_AlthonLimited
CreatedBy	drawings@althon.co.uk
CreatedOn	2019-05-10T08:30:00
Category	n/a
Description	Precast Concrete Headwall
AssetType	Fixed
Manufacturer	sales@althon.co.uk
ModelNumber	RSFA12F
WarrantyGuarantorParts	sales@althon.co.uk
WarrantyDurationParts	n/a
WarrantyGuarantorLabor	n/a
WarrantyDurationLabor	n/a
WarrantyDurationUnit	year
ReplacementCost	n/a
ExpectedLife	>100
DurationUnit	year
WarrantyDescription	n/a
NominalLength	1800
NominalWidth	1300
NominalHeight	775
ModelReference	Precast Concrete Headwall
Shape	n/a
Size	1800 x 1300 x 775
Colour	Light Grey
Finish	Steel mould concrete finish
Grade	n/a
Material	Concrete
Constituents	n/a
Features	Lifting points cast into headwall
AccessibilityPerformance	n/a
CodePerformance	BS EN 15258:2008
SustainabilityPerformance	n/a

Parameter Name	Parameter Value
Author	Althon Limited
BIMObjectName	AlthonLimited_PrecastConcreteHeadwall_RSFA12F_150mmIDPipe_225mmIL
Version	1
LastUpdated	2019-05-10T08:30:00
ADSKCompatible	2X3
RevitCompatible	2018 +
ManufactureName	Althon Limited
ManufacturerURL	www.althon.co.uk
NBSDescription	Precast concrete headwall unit
NBSNote	n/a
NBSOfficeMasterTag	n/a
NBSReference	45-25-40/305
NBSTypeID	n/a
DocumentationLiterature	https://www.althon.co.uk/products/rsfa12f-rectangular-headwall/detail/
DocumentationInstallationGuide	https://www.althon.co.uk/products/rsfa12f-rectangular-headwall/detail/
DocumentationTechnical	https://www.althon.co.uk/products/rsfa12f-rectangular-headwall/detail/
DocumentationCertificates	On request
Uniclass2015code	Pr_20_93_37_65
Uniclass2015Title	Precast concrete headwall units
Uniclass2015Version	Products v1.13
AlthonGeneralNotes	We can cast multiple pipe opening, elliptical, square or rectangular culvert openings into any of our headwalls. We can also cast pipe openings into the wing walls of our headwalls.
AlthonHeadwallInstallation	Units should be bedded on minimum 200mm thick well compacted Class 6A* selected well graded granular material. *Manual of contract documents for Highway Works: Volume (MCHW1) specification for Highway Works, Series 600 (Nov.09). Sit the headwall level or with a slight fall 1:50 from pipe to spill mouth.
AlthonHandling	A. Weight of concrete is based on 2.4 tonne/m³+5% is recommended for sizing lifting equipment B. All lifting points shall be used as specified below C. Unit to be lifted as per lifting diagram
AlthonConcrete	A. Mix ref: Self-compacting DC4/DS4 Mix B. Lifting strength bases on 2 cubes = 20N/mm² C. Characteristic 28 day cube strength = 50N/mm² D. Concrete provides Design Chemical Class 4 (DC4) to special Digest1, Table F2
AlthonReinforcement	A. Reinforcement to BS EN 13369 B. Scheduling, dimensioning, bending & cutting to BS8666 C. Cage to be machine tied with steel wire
AlthonManufacture	A. Manufacture to BS EN 15258:2008 precast concrete products - Retaining wall elements, Factory Production Control certificate number: 0086-CPR-650448 & BS EN 13369 B. Tolerances to BS EN 13369 clause 4.3.1.1 C. Finishing Top: Class A Sides: Class A Base: Class A Rear of back wall: Self-Levelled D. Marking: Units shall be indelibly marked to show: mould reference code De-mould date Job reference number and unique product number unit weight (kg)
AlthonDesign	A. Concrete design to EC2 B. Althon have designed the concrete units only, the site conditions should be assessed for suitability by the scheme designer C. Units are designed to withstand a vertical live load surcharge of 10kN/M² D. Weight of soil - 18kN/M² E. Angle of internal friction = 30 Deg. F. Design Life: >100 years Cover Block Size (mm): All Faces 55 Min Cover Size (mm): All Faces 55 Max Cover Size (mm): All Faces 60 Exposure induced by Carbonation: All Faces XC3/4 Corrosion induced by Chloride: XD3 Freeze/thaw attack: XF4 Chemical attack: XA3
AlthonFabrication	A. Manufacture IAW EN 1090-2 EXC CLASS 1 B. Material grade is to be: BS EN 10025 S275 C. Welding carried out IAW EN 1090-2 PARA 7.5.4 - 7.5.18 D. All fillet and butt welds to have a minimum throat thickness of 6mm & joints to be fully welded where possible. E. Ensure vertical flats are fully welded both sides where possible. F. All sharp edges and burrs are to be removed. G. Remove all weld splatter. H. Holes by punching are permitted with reaming. I. Galvanising is carried out after fabrication to BS EN:ISO 1461
AlthonHandrailSpecification	A. Kee Klamp® Galvanised Size 8 Fittings B. Size 8 48.3mm OD 3.2mm Wall Thickness Galvanised Medium Duty Tube to BS EN 10255 C. 360N/m Design Load at stated in BS 8118, BS 6180, BS 6399 & BS 7818, Civil Engineering Specification for the Water Industry (CESWI) 7th Edition Clause 2.60 Handrails & Balusters & The Engineering Equipment and Materials Users' Association (EEMUA) Publication 105 7th Edition Factory Stairways, Ladders and Handrails D. Other design loads available on request E. GRP/FRP Handrails also available
AlthonSpecificationInformation	Opening in back wall cast to suit outside diameter of the pipe work. Invert level of pipe can be set to your specification
AlthonHeadwallMaxPipeSize	Max Pipe Opening PCC = 225mm ID and Max Pipe Opening Pastic/Clayware = 225mm ID
AlthonToeInformation	Our Sewers for Adoption compliant outfall range is available with toe extensions either 300 or 500mm thick with depths ranging from 400 to 1000mm.

Parameter Name	Parameter Value
Name	PrecastConcreteHeadwall_RSFA12F_225mmIDPipe_225mmIL_AlthonLimited
CreatedBy	drawings@althon.co.uk
CreatedOn	2019-05-10T08:30:00
Category	n/a
Description	Precast Concrete Headwall
AssetType	Fixed
Manufacturer	sales@althon.co.uk
ModelNumber	RSFA12F
WarrantyGuarantorParts	sales@althon.co.uk
WarrantyDurationParts	n/a
WarrantyGuarantorLabor	n/a
WarrantyDurationLabor	n/a
WarrantyDurationUnit	year
ReplacementCost	n/a
ExpectedLife	>100
DurationUnit	year
WarrantyDescription	n/a
NominalLength	1800
NominalWidth	1300
NominalHeight	775
ModelReference	Precast Concrete Headwall
Shape	n/a
Size	1800 x 1300 x 775
Colour	Light Grey
Finish	Steel mould concrete finish
Grade	n/a
Material	Concrete
Constituents	n/a
Features	Lifting points cast into headwall
AccessibilityPerformance	n/a
CodePerformance	BS EN 15258:2008
SustainabilityPerformance	n/a

RSFA12F Rectangular Headwall

Filters for RSFA12F Rectangular Headwall Downloads. To Download CAD and PDF Files Please Register or Login

All Available Downloads for RSFA12F Rectangular Headwall - Page 1 of 15

BIM Objects

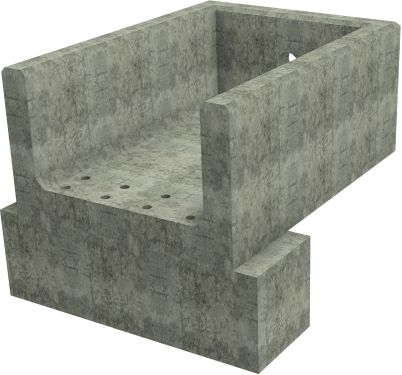

Example Render

RFA Object

ADSK Object

IFC Object

COBie Parameters

Althon_General Parameters

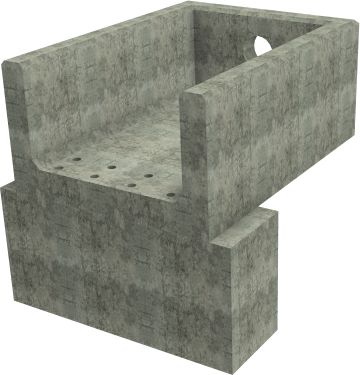

Example Render

IFC Object

ADSK Object

RFA Object

COBie Parameters

Althon_General Parameters

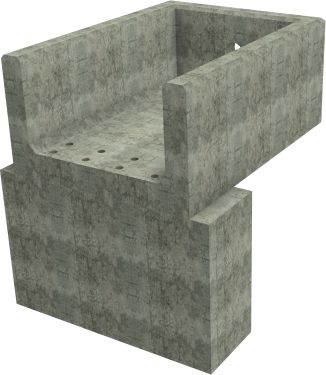

Example Render

RFA Object

ADSK Object

IFC Object

COBie Parameters

Althon_General Parameters

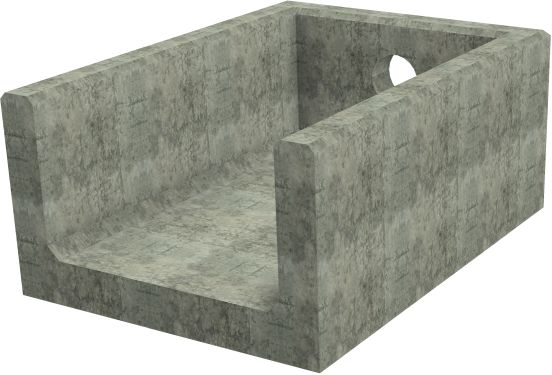

Example Render

ADSK Object

RFA Object

IFC Object

COBie Parameters

Althon_General Parameters

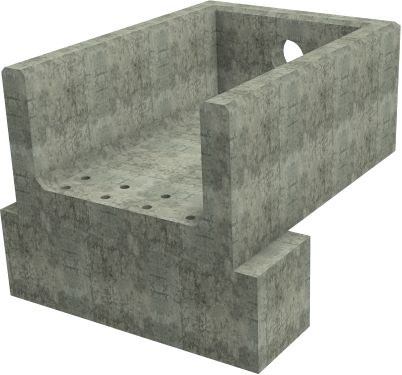

Example Render

IFC Object

ADSK Object

RFA Object

COBie Parameters

Althon_General Parameters

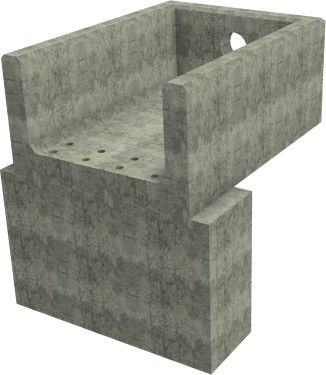

Example Render

RFA Object

ADSK Object

IFC Object

COBie Parameters

Althon_General Parameters

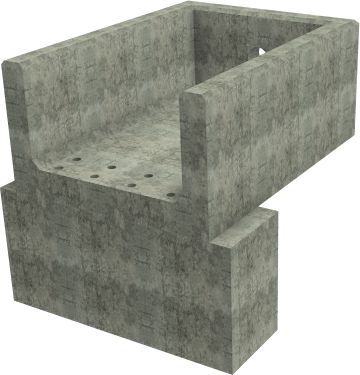

Example Render

RFA Object

ADSK Object

IFC Object

COBie Parameters

Althon_General Parameters

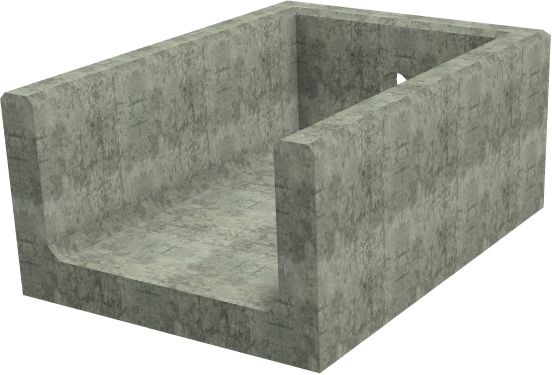

Example Render
