H8C B Headwall

BIM Available

Download Datasheets

H8C B Headwalls are precast concrete headwalls to suit plastic or clay pipes up to 600mm and concrete pipes up to 450mm. H8C B Headwalls have a backwall height of 1600mm. Stainless steel sockets can be cast into the headwall for the attachment of gratings and other factory fitted accessories.

H8C B Headwalls are cast 150mm thick to provide a longer design life and greater cover to reinforcement.

We cast the opening in the back wall of our precast concrete headwalls to suit the pipe diameter and material of the pipe being used. We can cast multiple pipe openings, elliptical, square or rectangular culvert openings into any of our headwalls. We can also cast pipe openings into the wing walls of our headwalls.

The H8C B Headwall weighs 2605kg

If you require any assistance or more information please contact us by phone on 01603 488700 or by email sales@althon.co.uk

As standard our headwalls have a natural concrete finish.
We can offer coloured headwalls in 4 colours but the final shade is affected by many influences.

Our Headwall Products are available in a range of colours

Natural

Cotswold

Agate

Raven Grey

Everglade

Product Name

Max Pipe Opening PCC

Max Pipe Opening Plastic / C'ware

Backwall Height

Approx Headwall Weight (kg)

H8C B Headwall

450

600

1600

2605

BIM Objects

If you cannot find what you are looking for, please either email us or use our Headwall Design Service

You can select multiple files below to be added to a single zip file, your selections will be retained across different Headwalls

H8C B Headwall - 300mm ID pipe - 100mm Invert Level

Example Render

RFA Object

Version: 1
Last Updated: April 17, 2019, 9:17 a.m.

Download RFA Object

Add RFA object to zip

ADSK Object

Version: 1
Last Updated: April 17, 2019, 9:17 a.m.

Download ADSK Object

Add ADSK object to zip

IFC Object

Version: 1
Last Updated: April 17, 2019, 9:17 a.m.

Download IFC Object

Add IFC object to zip

COBie Parameters

Parameter Name	Parameter Value
Name	PrecastConcreteHeadwall_H8CB_300mmIDPipe_100mmIL_AlthonLimited
CreatedBy	drawings@althon.co.uk
CreatedOn	2019-04-17T09:17:00
Category	n/a
Description	Precast Concrete Headwall
AssetType	Fixed
Manufacturer	sales@althon.co.uk
ModelNumber	H8CB
WarrantyGuarantorParts	sales@althon.co.uk
WarrantyDurationParts	n/a
WarrantyGuarantorLabor	n/a
WarrantyDurationLabor	n/a
WarrantyDurationUnit	year
ReplacementCost	n/a
ExpectedLife	>100
DurationUnit	year
WarrantyDescription	n/a
NominalLength	1370
NominalWidth	685
NominalHeight	1600
ModelReference	Precast Concrete Headwall
Shape	n/a
Size	1370 x 685 x 1600
Colour	Light Grey
Finish	Steel mould concrete finish
Grade	n/a
Material	Concrete
Constituents	n/a
Features	Lifting points cast into headwall
AccessibilityPerformance	n/a
CodePerformance	BS EN 15258:2008
SustainabilityPerformance	n/a

Althon_General Parameters

Parameter Name	Parameter Value
Author	Althon Limited
BIMObjectName	AlthonLimited_PrecastConcreteHeadwall_H8CB_300mmIDPipe_100mmIL
Version	1
LastUpdated	2019-04-17T09:17:00
ADSKCompatible	2X3
RevitCompatible	2018 +
ManufactureName	Althon Limited
ManufacturerURL	www.althon.co.uk
NBSDescription	Precast concrete headwall unit
NBSNote	n/a
NBSOfficeMasterTag	n/a
NBSReference	45-25-40/305
NBSTypeID	n/a
DocumentationLiterature	https://www.althon.co.uk/products/h8c-b-headwall/detail/
DocumentationInstallationGuide	https://www.althon.co.uk/products/h8c-b-headwall/detail/
DocumentationTechnical	https://www.althon.co.uk/products/h8c-b-headwall/detail/
DocumentationCertificates	On request
Uniclass2015code	Pr_20_93_37_65
Uniclass2015Title	Precast concrete headwall units
Uniclass2015Version	Products v1.13
AlthonGeneralNotes	We can cast multiple pipe opening, elliptical, square or rectangular culvert openings into any of our headwalls. We can also cast pipe openings into the wing walls of our headwalls.
AlthonHeadwallInstallation	Units should be bedded on minimum 150mm of semi-dry concrete. Sit the headwall level or with a slight fall 1:50 from pipe to spill mouth.
AlthonHandling	A. Weight of concrete is based on 2.4 tonne/m³+5% is recommended for sizing lifting equipment B. All lifting points shall be used as specified below - Anchor points & loops - Total Qty 3 C. Unit to be lifted as per lifting diagram
AlthonConcrete	A. Mix ref: Self-compacting DC4/DS4 Mix B. Lifting strength bases on 2 cubes = 20N/mm² C. Characteristic 28 day cube strength = 50N/mm² D. Concrete provides Design Chemical Class 4 (DC4) to special Digest1, Table F2
AlthonReinforcement	A. Reinforcement to BS EN 13369 B. Scheduling, dimensioning, bending & cutting to BS8666 C. Cage to be machine tied with steel wire
AlthonManufacture	A. Manufacture to BS EN 15258:2008 precast concrete products - Retaining wall elements, Factory Production Control certificate number: 0086-CPR-650448 & BS EN 13369 B. Tolerances to BS EN 13369 clause 4.3.1.1 C. Finishing Top: Class A Sides: Class A Base: Class A Rear of back wall: Self-Levelled D. Marking: Units shall be indelibly marked to show: mould reference code De-mould date Job reference number and unique product number unit weight (kg)
AlthonDesign	A. Concrete design to EC2 B. Althon have designed the concrete units only, the site conditions should be assessed for suitability by the scheme designer C. Units are designed to withstand a vertical live load surcharge of 10kN/M² D. Weight of soil - 18kN/M² E. Angle of internal friction = 30 Deg. F. Design Life: >100 years Cover Block Size (mm): All Faces 55 Min Cover Size (mm): All Faces 55 Max Cover Size (mm): All Faces 60 Exposure induced by Carbonation: All Faces XC3/4 Corrosion induced by Chloride: XD3 Freeze/thaw attack: XF4 Chemical attack: XA3
AlthonFabrication	A. Manufacture IAW EN 1090-2 EXC CLASS 1 B. Material grade is to be: BS EN 10025 S275 C. Welding carried out IAW EN 1090-2 PARA 7.5.4 - 7.5.18 D. All fillet and butt welds to have a minimum throat thickness of 6mm & joints to be fully welded where possible. E. Ensure vertical flats are fully welded both sides where possible. F. All sharp edges and burrs are to be removed. G. Remove all weld splatter. H. Holes by punching are permitted with reaming. I. Galvanising is carried out after fabrication to BS EN:ISO 1461
AlthonSpecificationInformation	Opening in back wall cast to suit outside diameter of the pipe work. Invert level of pipe can be set to your specification
AlthonHeadwallMaxPipeSize	Max Pipe Opening PCC = 450mm ID and Max Pipe Opening Pastic/Clayware = 600mm ID

Built with: Autodesk Inventor Professional 2018

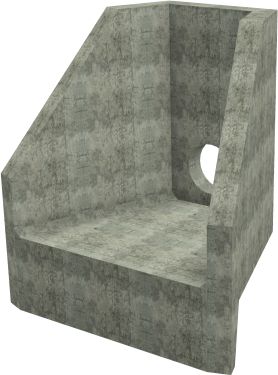

H8C B Headwall - 375mm ID pipe - 100mm Invert Level

Example Render

IFC Object

Version: 1
Last Updated: April 17, 2019, 9:17 a.m.

Download IFC Object

Add IFC object to zip

RFA Object

Version: 1
Last Updated: April 17, 2019, 9:17 a.m.

Download RFA Object

Add RFA object to zip

ADSK Object

Version: 1
Last Updated: April 17, 2019, 9:17 a.m.

Download ADSK Object

Add ADSK object to zip

COBie Parameters

Parameter Name	Parameter Value
Name	PrecastConcreteHeadwall_H8CB_375mmIDPipe_100mmIL_AlthonLimited
CreatedBy	drawings@althon.co.uk
CreatedOn	2019-04-17T09:17:00
Category	n/a
Description	Precast Concrete Headwall
AssetType	Fixed
Manufacturer	sales@althon.co.uk
ModelNumber	H8CB
WarrantyGuarantorParts	sales@althon.co.uk
WarrantyDurationParts	n/a
WarrantyGuarantorLabor	n/a
WarrantyDurationLabor	n/a
WarrantyDurationUnit	year
ReplacementCost	n/a
ExpectedLife	>100
DurationUnit	year
WarrantyDescription	n/a
NominalLength	1370
NominalWidth	685
NominalHeight	1600
ModelReference	Precast Concrete Headwall
Shape	n/a
Size	1370 x 685 x 1600
Colour	Light Grey
Finish	Steel mould concrete finish
Grade	n/a
Material	Concrete
Constituents	n/a
Features	Lifting points cast into headwall
AccessibilityPerformance	n/a
CodePerformance	BS EN 15258:2008
SustainabilityPerformance	n/a

Althon_General Parameters

Parameter Name	Parameter Value
Author	Althon Limited
BIMObjectName	AlthonLimited_PrecastConcreteHeadwall_H8CB_375mmIDPipe_100mmIL
Version	1
LastUpdated	2019-04-17T09:17:00
ADSKCompatible	2X3
RevitCompatible	2018 +
ManufactureName	Althon Limited
ManufacturerURL	www.althon.co.uk
NBSDescription	Precast concrete headwall unit
NBSNote	n/a
NBSOfficeMasterTag	n/a
NBSReference	45-25-40/305
NBSTypeID	n/a
DocumentationLiterature	https://www.althon.co.uk/products/h8c-b-headwall/detail/
DocumentationInstallationGuide	https://www.althon.co.uk/products/h8c-b-headwall/detail/
DocumentationTechnical	https://www.althon.co.uk/products/h8c-b-headwall/detail/
DocumentationCertificates	On request
Uniclass2015code	Pr_20_93_37_65
Uniclass2015Title	Precast concrete headwall units
Uniclass2015Version	Products v1.13
AlthonGeneralNotes	We can cast multiple pipe opening, elliptical, square or rectangular culvert openings into any of our headwalls. We can also cast pipe openings into the wing walls of our headwalls.
AlthonHeadwallInstallation	Units should be bedded on minimum 150mm of semi-dry concrete. Sit the headwall level or with a slight fall 1:50 from pipe to spill mouth.
AlthonHandling	A. Weight of concrete is based on 2.4 tonne/m³+5% is recommended for sizing lifting equipment B. All lifting points shall be used as specified below - Anchor points & loops - Total Qty 3 C. Unit to be lifted as per lifting diagram
AlthonConcrete	A. Mix ref: Self-compacting DC4/DS4 Mix B. Lifting strength bases on 2 cubes = 20N/mm² C. Characteristic 28 day cube strength = 50N/mm² D. Concrete provides Design Chemical Class 4 (DC4) to special Digest1, Table F2
AlthonReinforcement	A. Reinforcement to BS EN 13369 B. Scheduling, dimensioning, bending & cutting to BS8666 C. Cage to be machine tied with steel wire
AlthonManufacture	A. Manufacture to BS EN 15258:2008 precast concrete products - Retaining wall elements, Factory Production Control certificate number: 0086-CPR-650448 & BS EN 13369 B. Tolerances to BS EN 13369 clause 4.3.1.1 C. Finishing Top: Class A Sides: Class A Base: Class A Rear of back wall: Self-Levelled D. Marking: Units shall be indelibly marked to show: mould reference code De-mould date Job reference number and unique product number unit weight (kg)
AlthonDesign	A. Concrete design to EC2 B. Althon have designed the concrete units only, the site conditions should be assessed for suitability by the scheme designer C. Units are designed to withstand a vertical live load surcharge of 10kN/M² D. Weight of soil - 18kN/M² E. Angle of internal friction = 30 Deg. F. Design Life: >100 years Cover Block Size (mm): All Faces 55 Min Cover Size (mm): All Faces 55 Max Cover Size (mm): All Faces 60 Exposure induced by Carbonation: All Faces XC3/4 Corrosion induced by Chloride: XD3 Freeze/thaw attack: XF4 Chemical attack: XA3
AlthonFabrication	A. Manufacture IAW EN 1090-2 EXC CLASS 1 B. Material grade is to be: BS EN 10025 S275 C. Welding carried out IAW EN 1090-2 PARA 7.5.4 - 7.5.18 D. All fillet and butt welds to have a minimum throat thickness of 6mm & joints to be fully welded where possible. E. Ensure vertical flats are fully welded both sides where possible. F. All sharp edges and burrs are to be removed. G. Remove all weld splatter. H. Holes by punching are permitted with reaming. I. Galvanising is carried out after fabrication to BS EN:ISO 1461
AlthonSpecificationInformation	Opening in back wall cast to suit outside diameter of the pipe work. Invert level of pipe can be set to your specification
AlthonHeadwallMaxPipeSize	Max Pipe Opening PCC = 450mm ID and Max Pipe Opening Pastic/Clayware = 600mm ID

Built with: Autodesk Inventor Professional 2018

H8C B Headwall - 450mm ID pipe - 100mm Invert Level

Example Render

RFA Object

Version: 1
Last Updated: April 17, 2019, 9:17 a.m.

Download RFA Object

Add RFA object to zip

ADSK Object

Version: 1
Last Updated: April 17, 2019, 9:17 a.m.

Download ADSK Object

Add ADSK object to zip

IFC Object

Version: 1
Last Updated: April 17, 2019, 9:17 a.m.

Download IFC Object

Add IFC object to zip

COBie Parameters

Parameter Name	Parameter Value
Name	PrecastConcreteHeadwall_H8CB_450mmIDPipe_100mmIL_AlthonLimited
CreatedBy	drawings@althon.co.uk
CreatedOn	2019-04-17T09:17:00
Category	n/a
Description	Precast Concrete Headwall
AssetType	Fixed
Manufacturer	sales@althon.co.uk
ModelNumber	H8CB
WarrantyGuarantorParts	sales@althon.co.uk
WarrantyDurationParts	n/a
WarrantyGuarantorLabor	n/a
WarrantyDurationLabor	n/a
WarrantyDurationUnit	year
ReplacementCost	n/a
ExpectedLife	>100
DurationUnit	year
WarrantyDescription	n/a
NominalLength	1370
NominalWidth	685
NominalHeight	1600
ModelReference	Precast Concrete Headwall
Shape	n/a
Size	1370 x 685 x 1600
Colour	Light Grey
Finish	Steel mould concrete finish
Grade	n/a
Material	Concrete
Constituents	n/a
Features	Lifting points cast into headwall
AccessibilityPerformance	n/a
CodePerformance	BS EN 15258:2008
SustainabilityPerformance	n/a

Althon_General Parameters

Parameter Name	Parameter Value
Author	Althon Limited
BIMObjectName	AlthonLimited_PrecastConcreteHeadwall_H8CB_450mmIDPipe_100mmIL
Version	1
LastUpdated	2019-04-17T09:17:00
ADSKCompatible	2X3
RevitCompatible	2018 +
ManufactureName	Althon Limited
ManufacturerURL	www.althon.co.uk
NBSDescription	Precast concrete headwall unit
NBSNote	n/a
NBSOfficeMasterTag	n/a
NBSReference	45-25-40/305
NBSTypeID	n/a
DocumentationLiterature	https://www.althon.co.uk/products/h8c-b-headwall/detail/
DocumentationInstallationGuide	https://www.althon.co.uk/products/h8c-b-headwall/detail/
DocumentationTechnical	https://www.althon.co.uk/products/h8c-b-headwall/detail/
DocumentationCertificates	On request
Uniclass2015code	Pr_20_93_37_65
Uniclass2015Title	Precast concrete headwall units
Uniclass2015Version	Products v1.13
AlthonGeneralNotes	We can cast multiple pipe opening, elliptical, square or rectangular culvert openings into any of our headwalls. We can also cast pipe openings into the wing walls of our headwalls.
AlthonHeadwallInstallation	Units should be bedded on minimum 150mm of semi-dry concrete. Sit the headwall level or with a slight fall 1:50 from pipe to spill mouth.
AlthonHandling	A. Weight of concrete is based on 2.4 tonne/m³+5% is recommended for sizing lifting equipment B. All lifting points shall be used as specified below - Anchor points & loops - Total Qty 3 C. Unit to be lifted as per lifting diagram
AlthonConcrete	A. Mix ref: Self-compacting DC4/DS4 Mix B. Lifting strength bases on 2 cubes = 20N/mm² C. Characteristic 28 day cube strength = 50N/mm² D. Concrete provides Design Chemical Class 4 (DC4) to special Digest1, Table F2
AlthonReinforcement	A. Reinforcement to BS EN 13369 B. Scheduling, dimensioning, bending & cutting to BS8666 C. Cage to be machine tied with steel wire
AlthonManufacture	A. Manufacture to BS EN 15258:2008 precast concrete products - Retaining wall elements, Factory Production Control certificate number: 0086-CPR-650448 & BS EN 13369 B. Tolerances to BS EN 13369 clause 4.3.1.1 C. Finishing Top: Class A Sides: Class A Base: Class A Rear of back wall: Self-Levelled D. Marking: Units shall be indelibly marked to show: mould reference code De-mould date Job reference number and unique product number unit weight (kg)
AlthonDesign	A. Concrete design to EC2 B. Althon have designed the concrete units only, the site conditions should be assessed for suitability by the scheme designer C. Units are designed to withstand a vertical live load surcharge of 10kN/M² D. Weight of soil - 18kN/M² E. Angle of internal friction = 30 Deg. F. Design Life: >100 years Cover Block Size (mm): All Faces 55 Min Cover Size (mm): All Faces 55 Max Cover Size (mm): All Faces 60 Exposure induced by Carbonation: All Faces XC3/4 Corrosion induced by Chloride: XD3 Freeze/thaw attack: XF4 Chemical attack: XA3
AlthonFabrication	A. Manufacture IAW EN 1090-2 EXC CLASS 1 B. Material grade is to be: BS EN 10025 S275 C. Welding carried out IAW EN 1090-2 PARA 7.5.4 - 7.5.18 D. All fillet and butt welds to have a minimum throat thickness of 6mm & joints to be fully welded where possible. E. Ensure vertical flats are fully welded both sides where possible. F. All sharp edges and burrs are to be removed. G. Remove all weld splatter. H. Holes by punching are permitted with reaming. I. Galvanising is carried out after fabrication to BS EN:ISO 1461
AlthonSpecificationInformation	Opening in back wall cast to suit outside diameter of the pipe work. Invert level of pipe can be set to your specification
AlthonHeadwallMaxPipeSize	Max Pipe Opening PCC = 450mm ID and Max Pipe Opening Pastic/Clayware = 600mm ID

Built with: Autodesk Inventor Professional 2018
