Althon penstock manhole chambers have been designed to make installation on-site as fast, safe and efficient as possible. Each concrete chamber comes in two halves with a reinforced cover slab. The units are cast to order to suit any pipe openings and invert levels required. The real benefit of using one of our concrete penstock chambers is in the ability to factory fit accessories to the unit prior to delivery to site. Our penstock chambers are typically factory fitted with penstocks. However flow control devices such as Tideflex Valves and flap valves as well as safety chains and ladders can also be fitted before delivery to site. CAD and PDF drawings of our penstocks chambers and penstocks are available.

Althon penstock manhole chamber 1830 x 1675 x 2610 is available with either a 150mm, 200mm, 250mm, 300mm, 400mm, 500mm, 600mm, 700mm, 800mm, 900mm or 1000mm penstock factory fitted.

CAD and PDF downloads are available below

All Althon Chieftan Inspection Chambers are available with extension pieces to increase the depth if required. Please contact our sales team for further details.

Our Inspection Chambers can also be supplied with galvanised steel covers, grates and frames.

If you require any assistance or more information please contact us by phone on 01603 488700 or by email sales@althon.co.uk

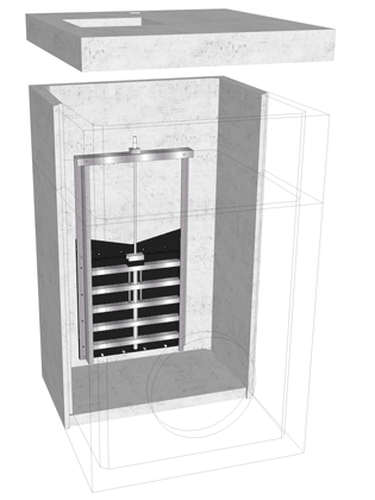

Penstock Manhole Chamber 1830 x 1675 x 2610 line drawing
Product Name
Penstock Size
Length
Width
Height
Total Weight
Penstock Manhole Chamber 1830 x 1675 x 2610
1000mm
1830mm
1675mm
2610mm
6670kg

    All Available Downloads for Penstock Manhole Chamber 1830 x 1675 x 2610

    Penstock Manhole Chamber 1830 x 1675 x 2610 + 150mm Penstock

    Penstock Manhole Chamber 1830 x 1675 x 2610 + 200mm Penstock

    Penstock Manhole Chamber 1830 x 1675 x 2610 + 250mm Penstock

    Penstock Manhole Chamber 1830 x 1675 x 2610 + 300mm Penstock

    Penstock Manhole Chamber 1830 x 1675 x 2610 + 400mm Penstock

    Penstock Manhole Chamber 1830 x 1675 x 2610 + 500mm Penstock

    Penstock Manhole Chamber 1830 x 1675 x 2610 + 600mm Penstock

    Penstock Manhole Chamber 1830 x 1675 x 2610 + 700mm Penstock

    Penstock Manhole Chamber 1830 x 1675 x 2610 + 800mm Penstock

    Penstock Manhole Chamber 1830 x 1675 x 2610 + 900mm Penstock

    Penstock Manhole Chamber 1830 x 1675 x 2610 + 1000mm Penstock

    Brochures, Datasheets and Installation Instructions for Penstock Manhole Chamber 1830 x 1675 x 2610
